SKU: FF1-16N-SET
Size: 1″ Body with 1″ NPT Thread
Features:
- Heavy Duty Design with 5076 PSI Rating
- Max Flow Rate: 73.97 GPM
- Locking sleeve helps prevent accidental disconnects
- Compact profile with high flow performance
- Harden steel construction with anti-corrosive plating
- Sleeves are hardened to resist deformation and maximize life of the coupler
- Valve design that allows for a minimal pressure drops and one hand operation
- Seals are rated for operating temperatures up to 250°F
Cross Reference:
| Manufacturer | Male | Female |
| SUMMIT | FF1M-16N | FF1F-16N |
| Parker FE Series | FEM-1002-16FP | FEM-1001-16FP |
| Safeway FFE49 Series | FFE491-8 | FFE495-8 |
| Faster FFH Series | FFH16 1NPT M | FFH16 1NPT F |
| Eaton Aeroquip FD89 | FD89-1002-16-12 | FD89-1001-16-12 |
| Snap Tite 74 Series | 74N16-16F | 74C16-16F |
| Stucchi FIRG Series | 801301029 | 801301028 |
| DNP PLT4 Series | FF-HPG-16-16N-NPT | FF-HPG-16-16C-NPT |

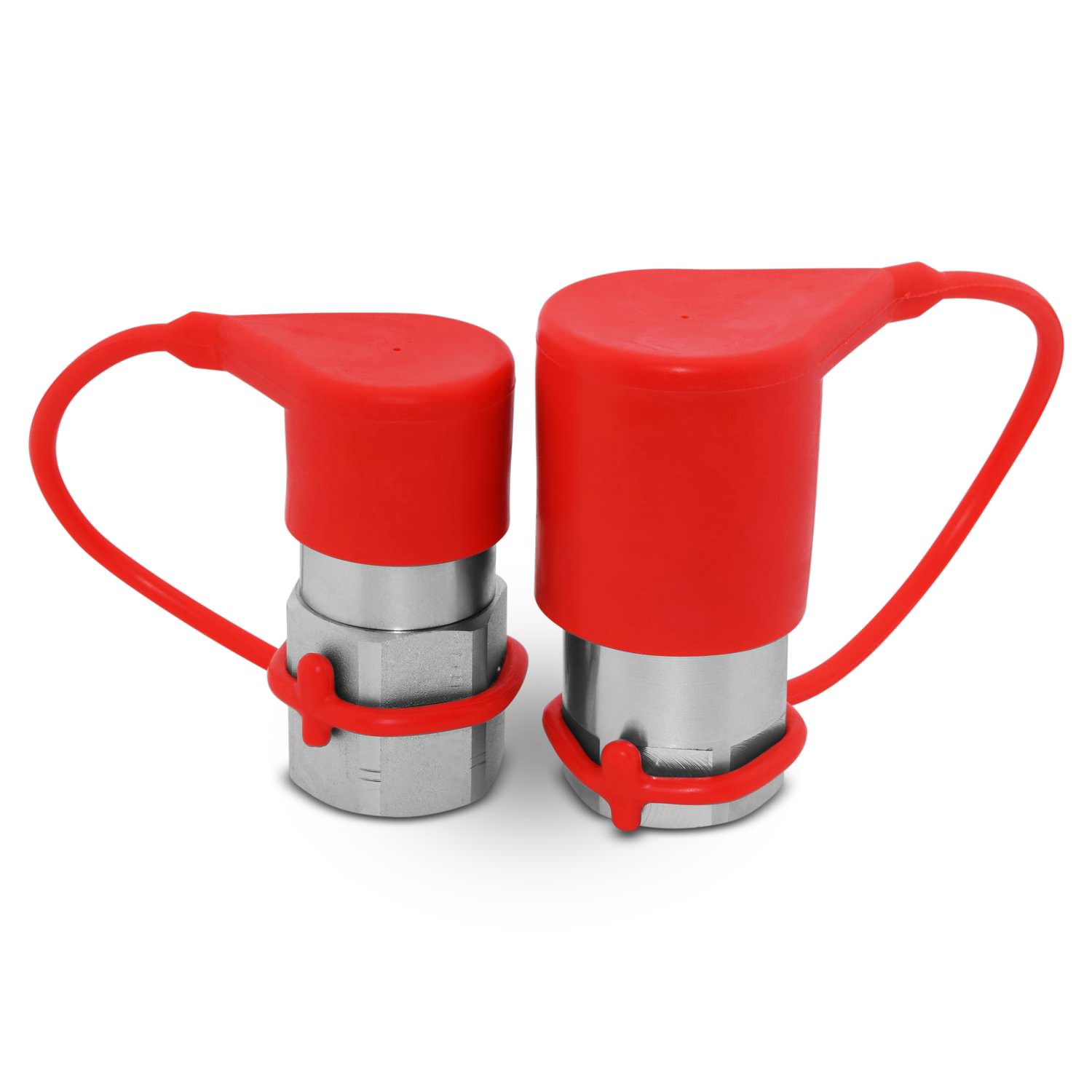

Kit Includes:
- 1 Female Coupler
- 1 Male Nipple
- 1 Female Dust Cap
- 1 Male Dust Cap
| Weight | 8 lbs |
|---|---|
| Dimensions | 8 × 6 × 5 in |
| ISO Standard | |
| Style | Flat Face |
| ISO Body Size | |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
| Coupling |
