Size: 1″ Body, 1″ NPT Thread, Poppet Valve

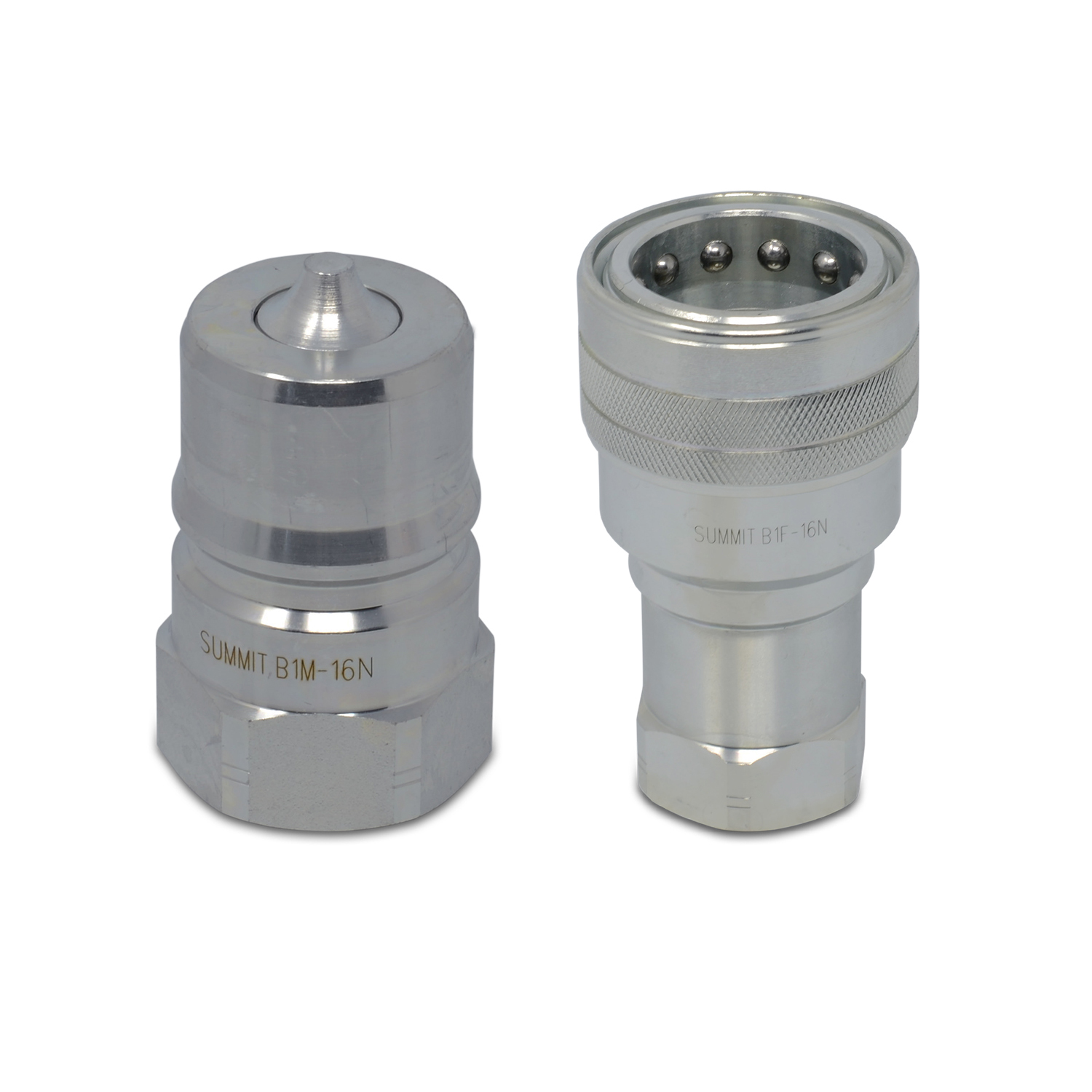

This 1″ NPT ISO 7241-B Coupler Set consists of a male and female quick coupler.
Benefits:
- Body: Carbon Steel
- Finishing: ZN-Fe (CRIII) Plating
- Seals: NBR standard seals
- Spring Material: 304 Stainless Steel
- Radial Locking Balls
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- Temperature Range: -15°F to +400°F
Features:
- 2000 PSI Rating
- Nominal Flow Rate: 50 GPM
- Max Flow Rate: 68.68 GPM
- Male Face Diameter 1.46” (65mm)
- Male Length: 2.9” (105mm)
- Female Face Diameter 2.52” (64mm)
- Female Length: 4.11” (104.4mm)
- Hex: 1.60” (40.6mm)
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BB1M-16N | BB1F-16N |
| Parker 60 Series | BH8-61 | BH8-60 |
| Safeway BS10 Series | BS101-8 | BS105-8 |
| Faster HNV Brass | HNV 1 NPT M 5V | HNV 1 NPT F 5V |
| Snap-Tite 72 Series | B72N16-16F | B72C16-16F |
| Stucchi IRBO Series | M IRBO100 NPT 804501111 |
F IRBO100 NPT 804501110 |
| Dixon H-Series | H8F8-B | 8HF8-B |
| Eaton HK Series | B8KP36 | B8HP36 |
| DNP HNV Series | HNV-B-16-16-N-NPT | HNV-B-16-16-C-NPT |
What’s Included:

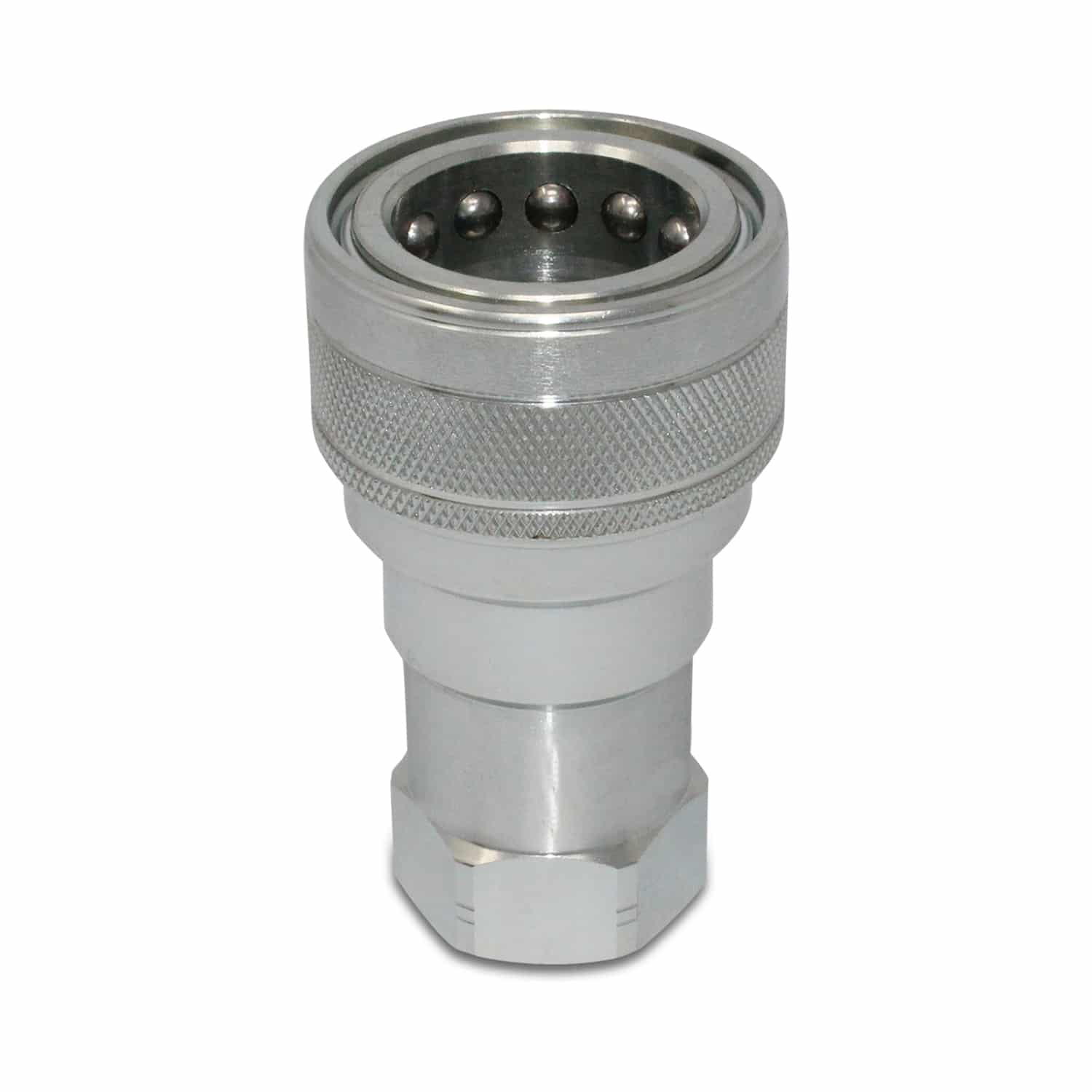

- Female Coupler

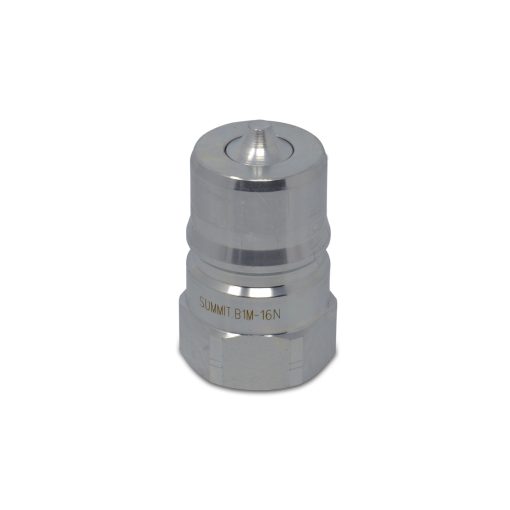

- Male Coupler
| Weight | 2.5 lbs |
|---|
