SKU: FF34-16N-SET

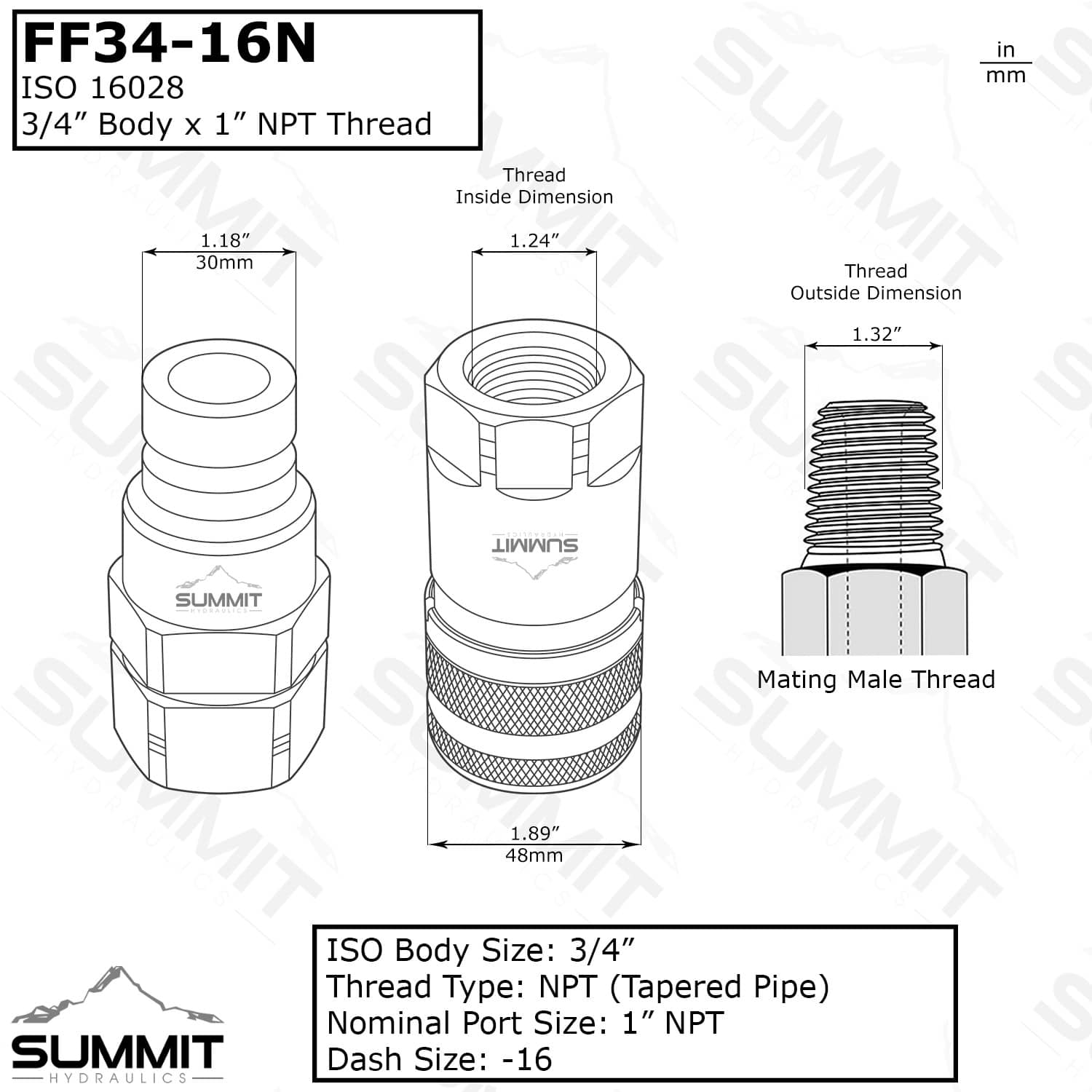

Size: 3/4″ Body with 1″ NPT
Features:
- Heavy Duty Design with 5076 PSI Rating
- Max Flow Rate: 52 GPM
- Locking sleeve helps prevent accidental disconnects
- Compact profile with high flow performance
- Harden steel construction with anti-corrosive plating
- Sleeves are hardened to resist deformation and maximize life of the coupler
- Valve design that allows for a minimal pressure drops and one hand operation
- Seals are rated for operating temperatures up to 250°F
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | FF34M-16N | FF34F-16N |
| Safeway FFE49 Series | FFE491-6 | FFE495-6 |
| Faster FFH Series | FFH12 1NPT M | FFH12 1NPT F |
| Eaton Aeroquip FD89 | FD89-1002-16-10 | FD89-1001-16-10 |
| Snap Tite 74 Series | 74N12-16F | 74C12-16F |
| Stucchi FIRG Series | 800801013 M. FIRG 100 NPT |
800801012 F. FIRG 100 NPT |
| DNP PLT4 Series | FF-HPG-12-16N-NPT | FF-HPG-12-16C-NPT |
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 5 × 4 in |
| Style | Flat Face |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
