SKU: B34F-12N

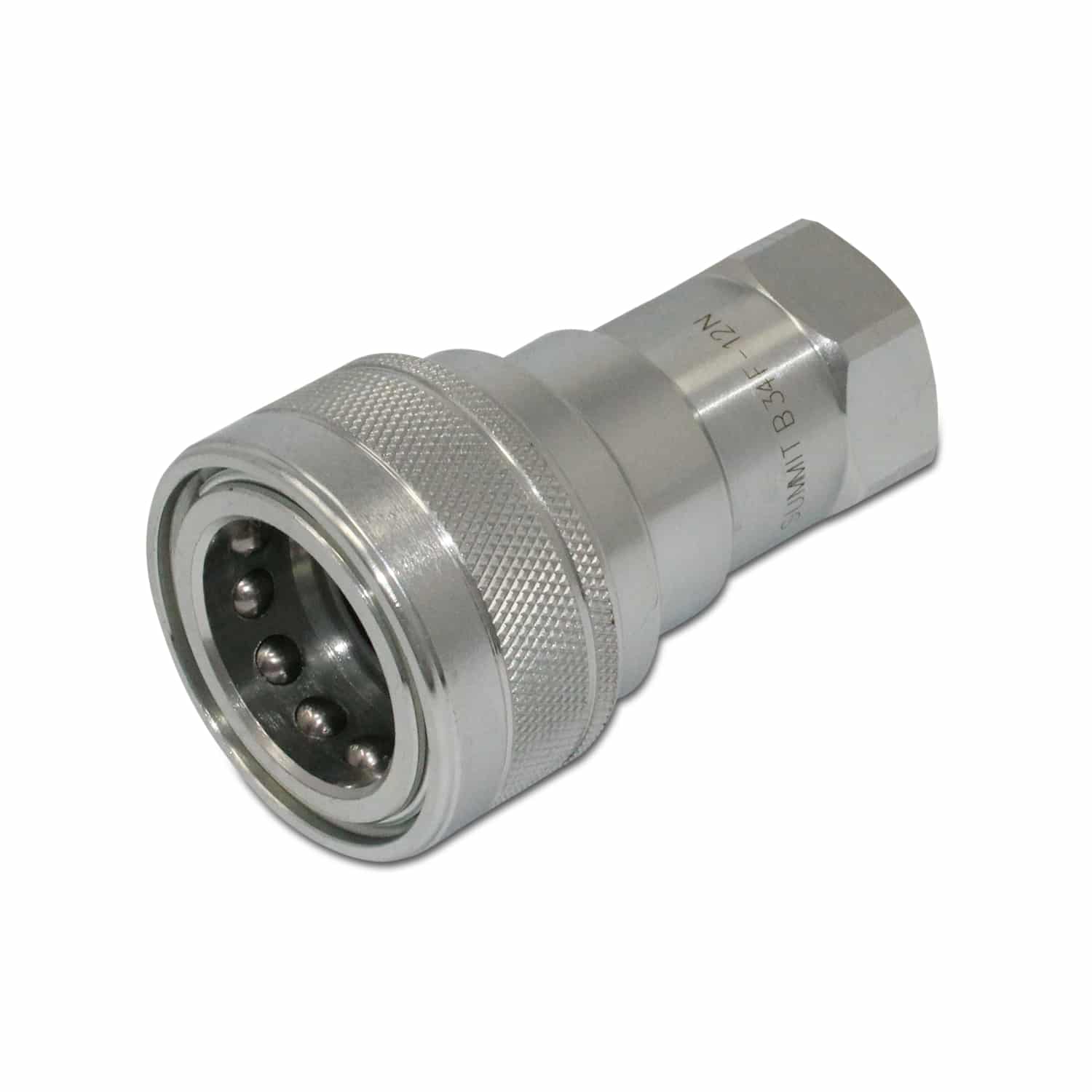

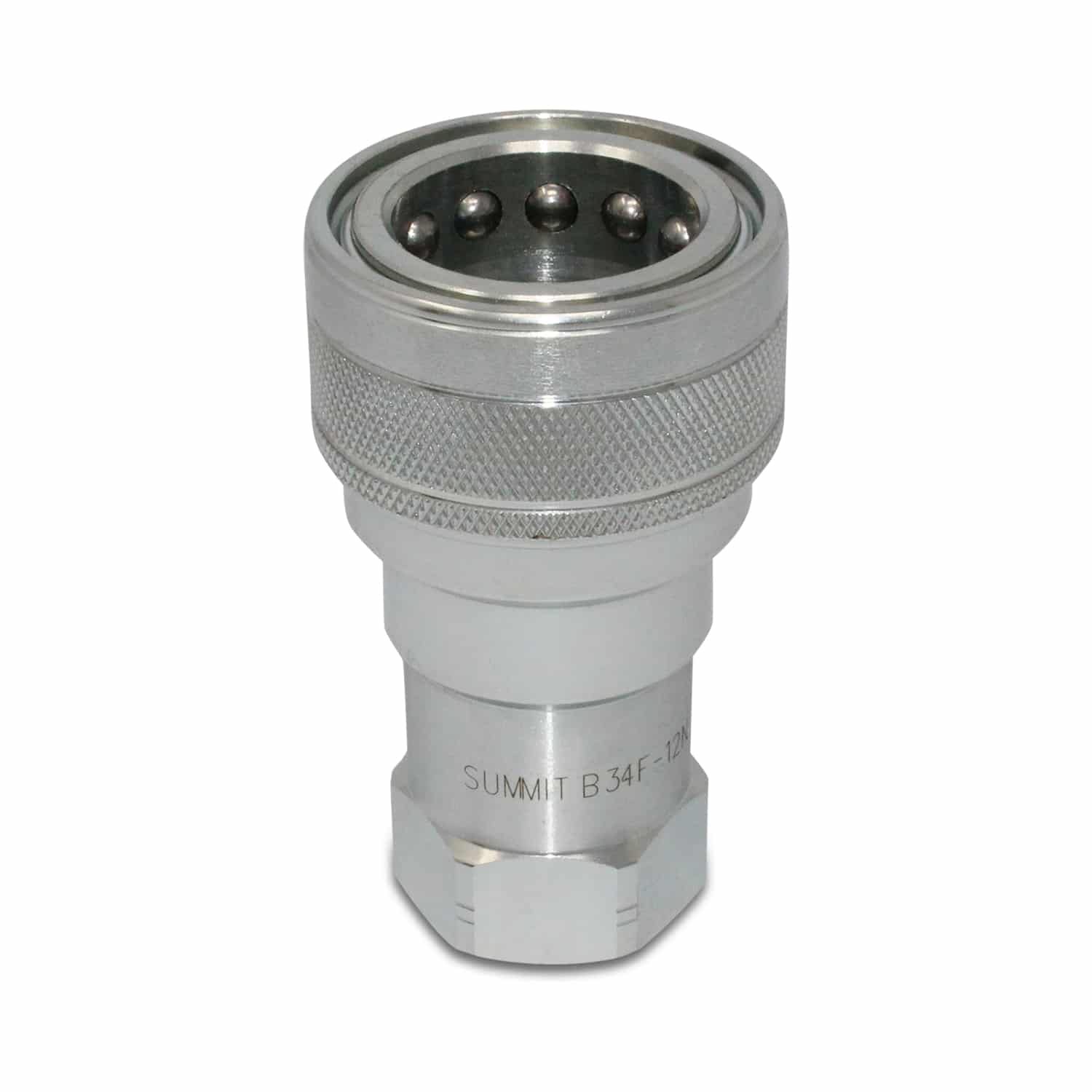

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.
Body Size: 3/4″ Body
Thread Size: 3/4″ NPT Thread, Poppet Valve
Benefits:
- Body: Carbon Steel
- Finishing: ZN-Fe (CRIII) Plating
- Seals: NBR standard seals
- Spring Material: 304 Stainless Steel
- Radial Locking Balls
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
Features:
- 3600 PSI Rating
- 14,500 PSI Burst Rating (Coupled)
- 24 GPM Max Flow
- 12 Nominal Flow Rate
- Female Face Diameter 2.05” (52mm)
- Female Length: 3.54” (90mm)
- Hex: 1.34” (34mm)
Interchangeable with:
| Manufacturer | Female |
| SUMMIT | B34F-12N |
| Parker 60 Series | H6-62 |
| Safeway S10 Series | S105-6 |
| Faster HNV | HNV 34 NPT F |
| Snap-Tite 72 Series | 72C12-12F |
| Stucchi IRB Series | F IRB34 NPT 800601008 |
| Dixon H-Series | 6HF6 |
| Eaton HK Series | 6HP31 |
| DNP HNV Series | HNV-12-12-C-NPT |
Kit Includes:
- 1 Female Coupler
| Weight | 1.2 lbs |
|---|---|
| Style | ISO 7241-B |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Hardened steel |
| Locking Type | Sleeve |
