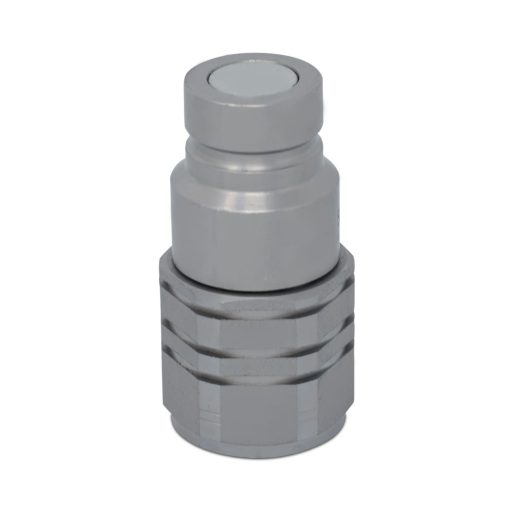

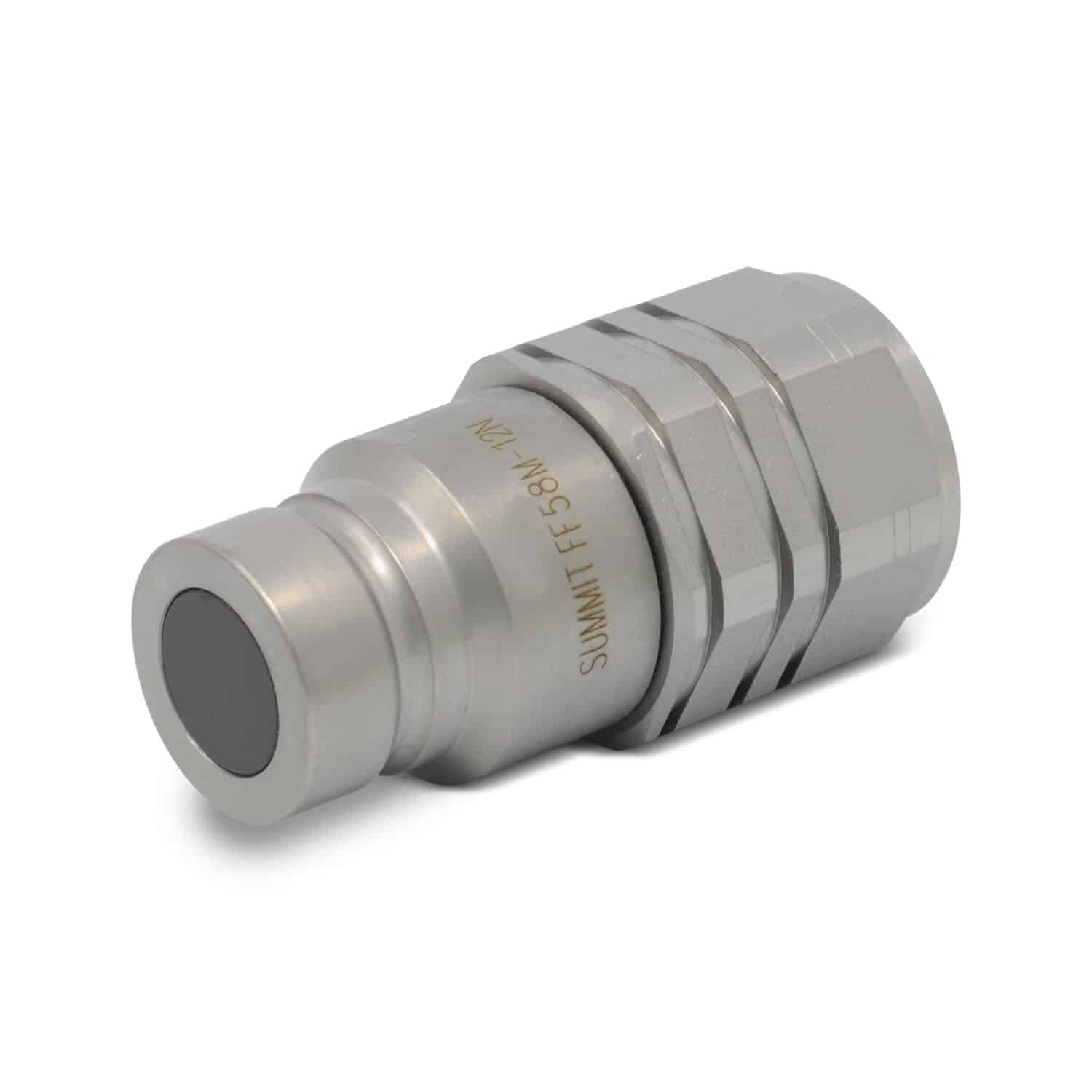

SKU: FF58M-12N
Size: 5/8″ Body with 3/4″ NPT Thread
Benefits:
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features:
- 5,076 PSI rating
- 39.63 GPM Max Flow Rate
- 20 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F

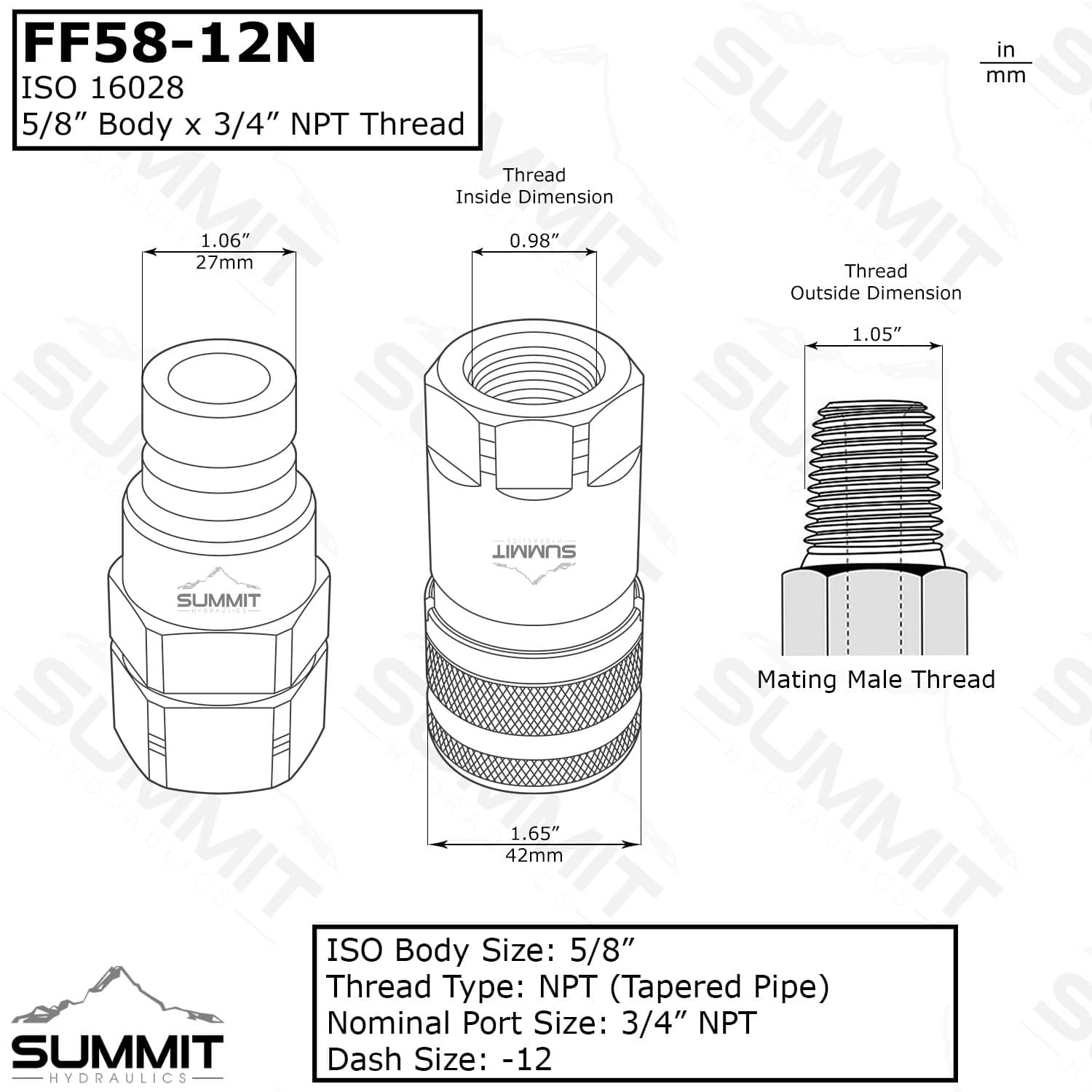

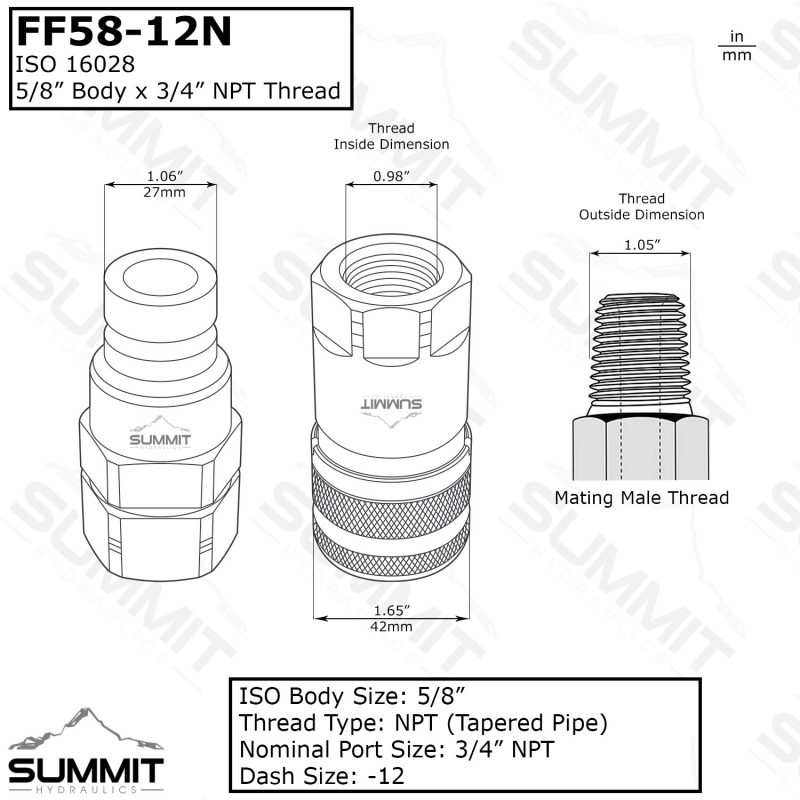

- Male Face Diameter: 1.06” (27mm)
- Male Length: 2.87” (73mm)
- Hex: 1.42” (36mm)
Interchangeable with:
| Manufacturer | Male |
| SUMMIT | FF58M-12N |
| Parker FE Series | FEM-622-12FP |
| Safeway FFE49 Series | N/A |
| Faster FFH Series | FFH10 34NPT M |
| Snap Tite 74 Series | 74N10-12F |
| Stucchi FIRG Series | 800801011 |
| Dixon HT Series | HT5F6 |
| DNP PLT4 Series | FF-HPG-10-12N-NPT |
| Style | Flat Face |
|---|---|
| Body Size | 5/8" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
