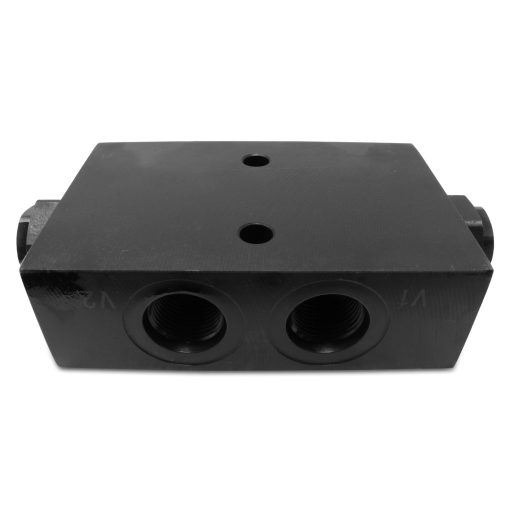

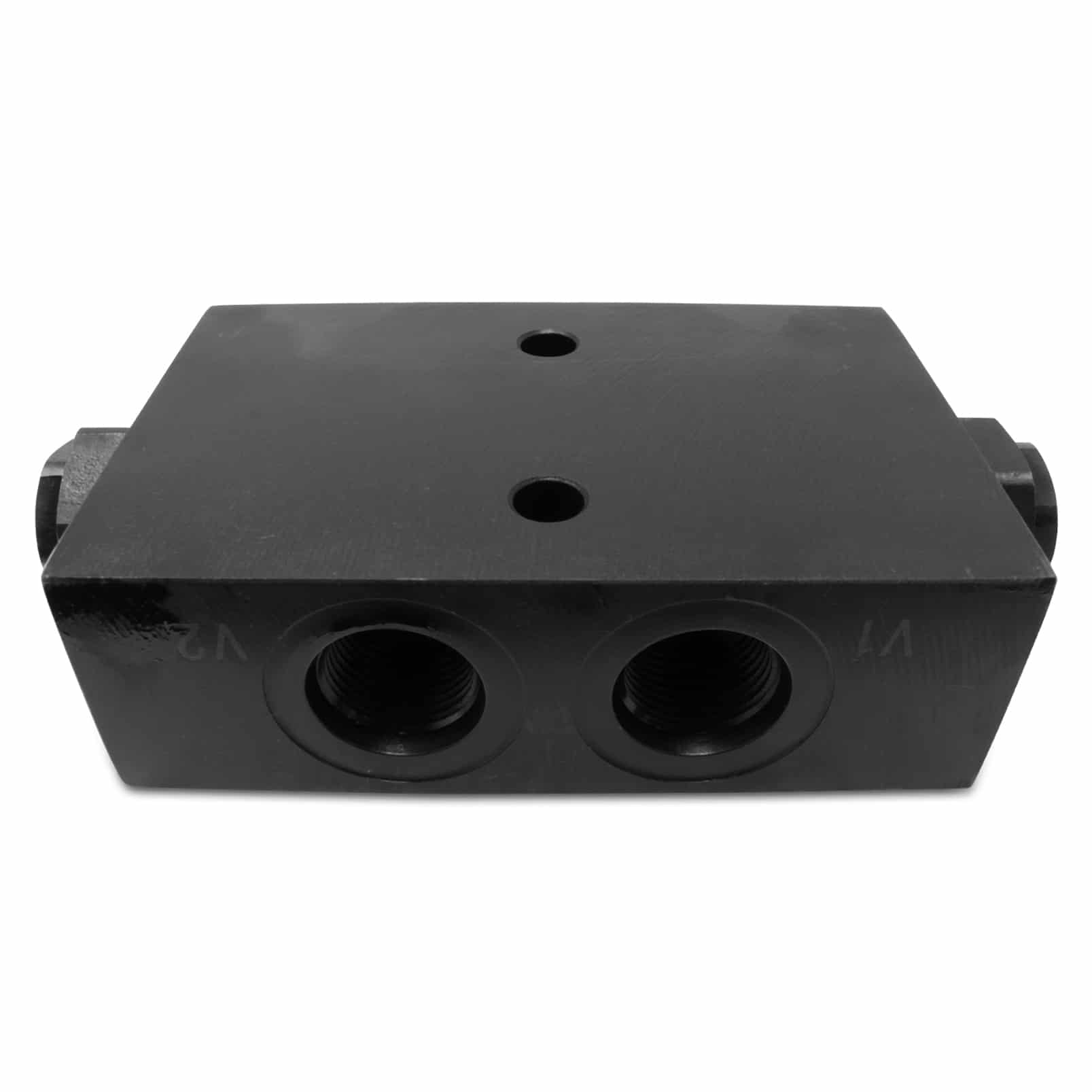

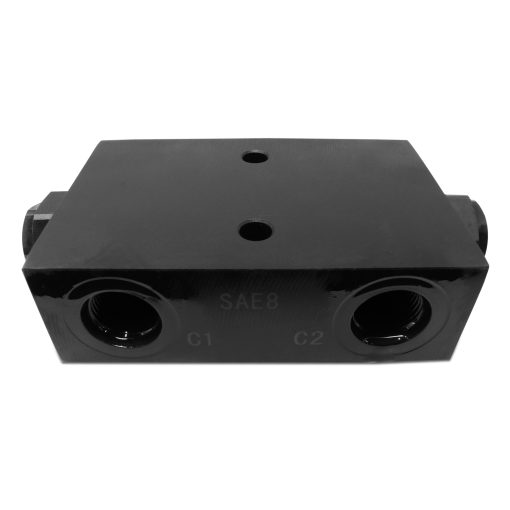

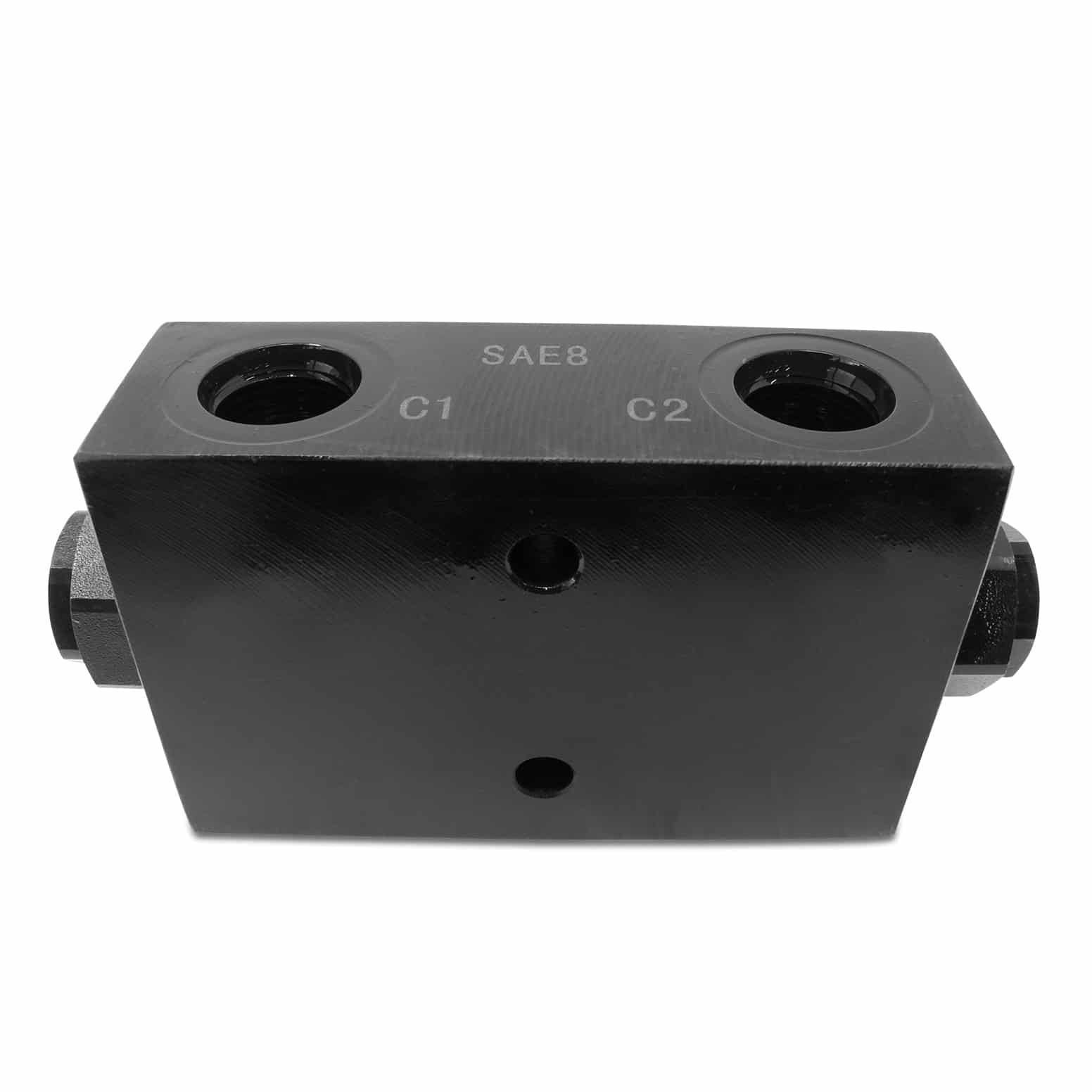

Double Pilot Operated Hydraulic Check Valve, Steel, #8 SAE Ports, 15 GPM

SKU: DCV101-408

This double pilot operated check valve is designed to hold hydraulic cylinders and prevent them from drifting down while your directional control valve is in the neutral position.

At rest the check valves remain seated, blocking flow from entering and exiting the cylinder and locking the cylinder in place.

When pressure is applied to either port, the check valve will open allowing free flow from the inlet to the actuator port across the check valve. When pressure builds and shifts the cylinder, the internal pilot piston will react quickly to the pressure and will shift against the return check.  This action mechanically pilots the valve open to allow return flow to pass through the valve from the actuator back to tank.  With both ports now open, the valve is unlocked and the hydraulically powered cylinder is now free to move.  When system pressure is shut off to the valve, the valve will then return to the holding condition

This double pilot operated valve also comes in an aluminum version.

Benefits:

• Prevents a load from falling if a hose ever fails
• Hardened, precision ground parts for durability
• Steel body resists corrosion

Features:

• Max Flow: 15 GPM
• Max Pressure: 3000 PSI
• Crack Pressure: 70 PSI
• Pilot Ratio: 3.5:1
• Port Size: #8 SAE O-Ring Boss (3/4”-16) Thread
• Weight: 4.1 lbs
