Flat Face Connect Under Pressure Hydraulic Quick Connect Coupler Set, #8 SAE Thread

SKU: FFP12-08S-SET

ISO Body Size: 1/2”

Port Thread: #8 SAE Thread ( 1/2″ O-Ring Boss)

Benefits:

• Allows to connect to a hydraulic line that is under pressure
• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 23.78 GPM Max Flow Rate
• 12 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F

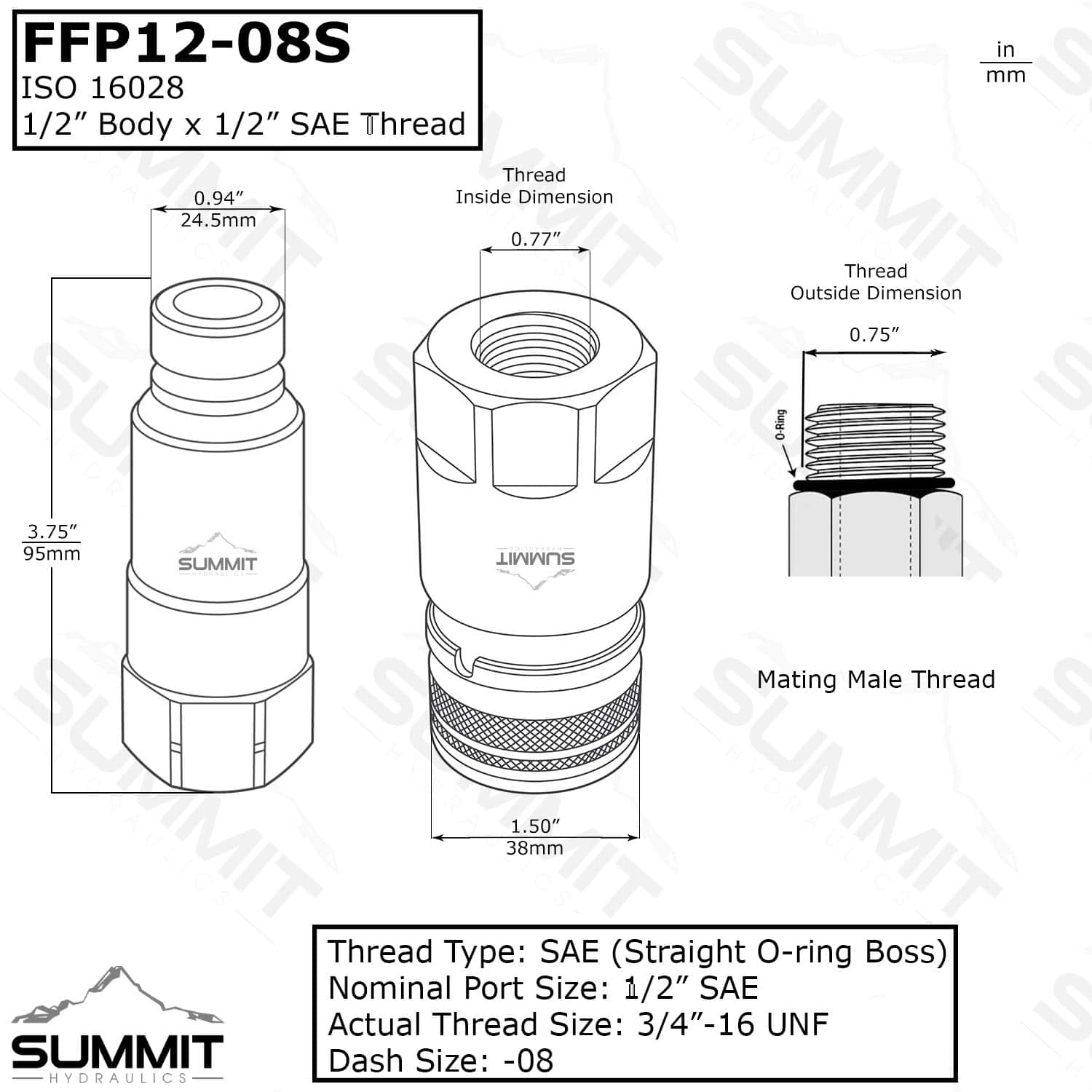

• Male Face Diameter: 0.94” (24.5mm)
• Female Face Diameter: 1.50” (38mm)
• Male Length: 3.75” (95mm)
• Female Length: 3.43” (87mm)
• Male Hex: 1.34” (34mm)
• Female Hex: 1.42” (36mm)
