Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ NPT Thread
SKU: FF12-12N-SET

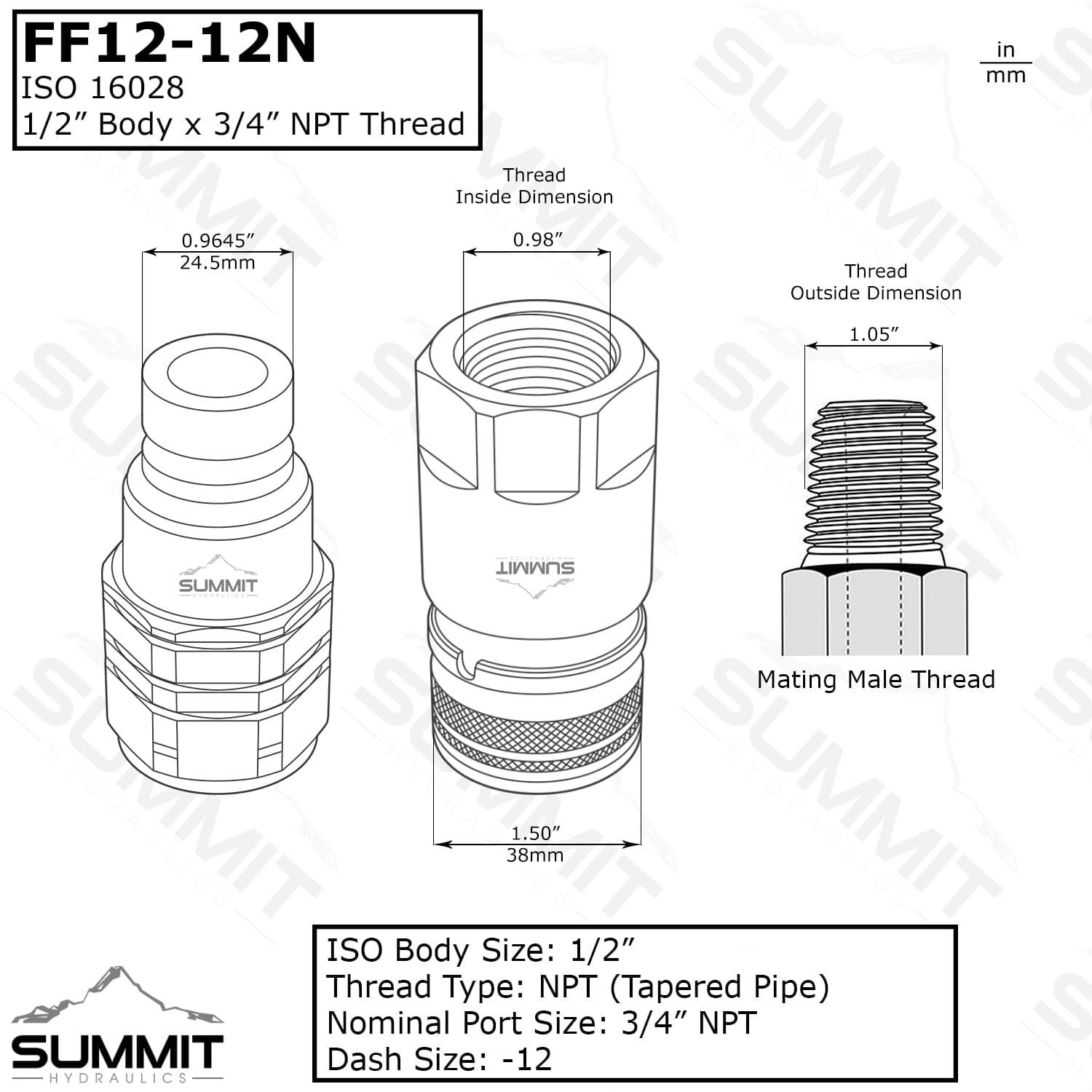

Body Size: 1/2″ Body with 3/4″ NPT Thread
Thread Size: 3/4″ NPT Thread
Features:
- Heavy Duty Design with 5076 PSI Rating
- Locking sleeve helps prevent accidental disconnects
- Compact profile with high flow performance
- Harden steel construction with anti-corrosive plating
- Sleeves are hardened to resist deformation and maximize life of the coupler
- Valve design that allows for a minimal pressure drops and one hand operation
- Seals are rated for operating temperatures up to 250°F
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | FF12M-12N | FF12F-12N |
| Parker FE Series | FEM-502-12FP | FEM-501-12FP |
| Safeway FFE49 Series | FFE491-6 | FFE495-6 |
| Faster FFH Series | FFH08 34NPT M | FFH08 34NPT F |
| Eaton Aeroquip FD89 | FD89-1002-12-08 | FD89-1001-12-08 |
| Snap Tite 74 Series | 74N8-12F | 74C8-12F |
| Stucchi FIRG Series | 800801009 | 800801008 |
| Dixon HT Series | HT4F6 | 4HTF6 |
| DNP PLT4 Series | FF-HPG-08-12N-NPT | FF-HPG-08-12C-NPT |
| Tomco FE Series | EP4-31 | EC4-31 |
Looking for a different hydraulic quick disconnect coupler? Look at our selection of 1/2″ body Flat Face couplers here! If you do not need the full assembly, you can also find the male coupler and female coupler. All variants are available here through Summit Hydraulics.
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 5 × 4 in |
| ISO Standard | |
| Style | Flat Face |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
| Coupling |
7 reviews for Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ NPT Thread
Add a review
Ben –
Thank you for supplying the fittings! We are using these fittings for our backup generator oil change process. It has this same female on its drain connection. This allows us to connect to an electric motor driven pump that will drain & recharge the oil so much faster!
Michael –
These showed up quickly. They were a good value compared to other purchase options. Time will tell if they are worth the money I spent on them and time I spend changing them out.
Marvin –
Look good especially for the price. I don’t think you can go wrong with these. I only give 4 stars because of the short time I’ve had them. Looking at them I wouldn’t expect to have a problem.
Lee –
Installed the female connection on my Bobcat T-180 and have had no problems with it. I ordered the same connection from another supplier that instantly leaked. This brand seems to be well made and as rugged as the original.
Noah –
Thank you for supplying the fittings! We are using these fittings for our backup generator oil change process. It has this same female on its drain connection. This allows us to connect to an electric motor driven pump that will drain & recharge the oil so much faster!
Nolan –
fit and function great on my case 1845c skidoader.
Lucas –
Working and not leaking.
