Hydraforce SV08-25-0-N-00 Solenoid Spool Cartridge Valve, 2-Way, Normally Open
SKU: SV08-25-0-N-00
Hydraforce Part Number: SV08-25-0-N-00

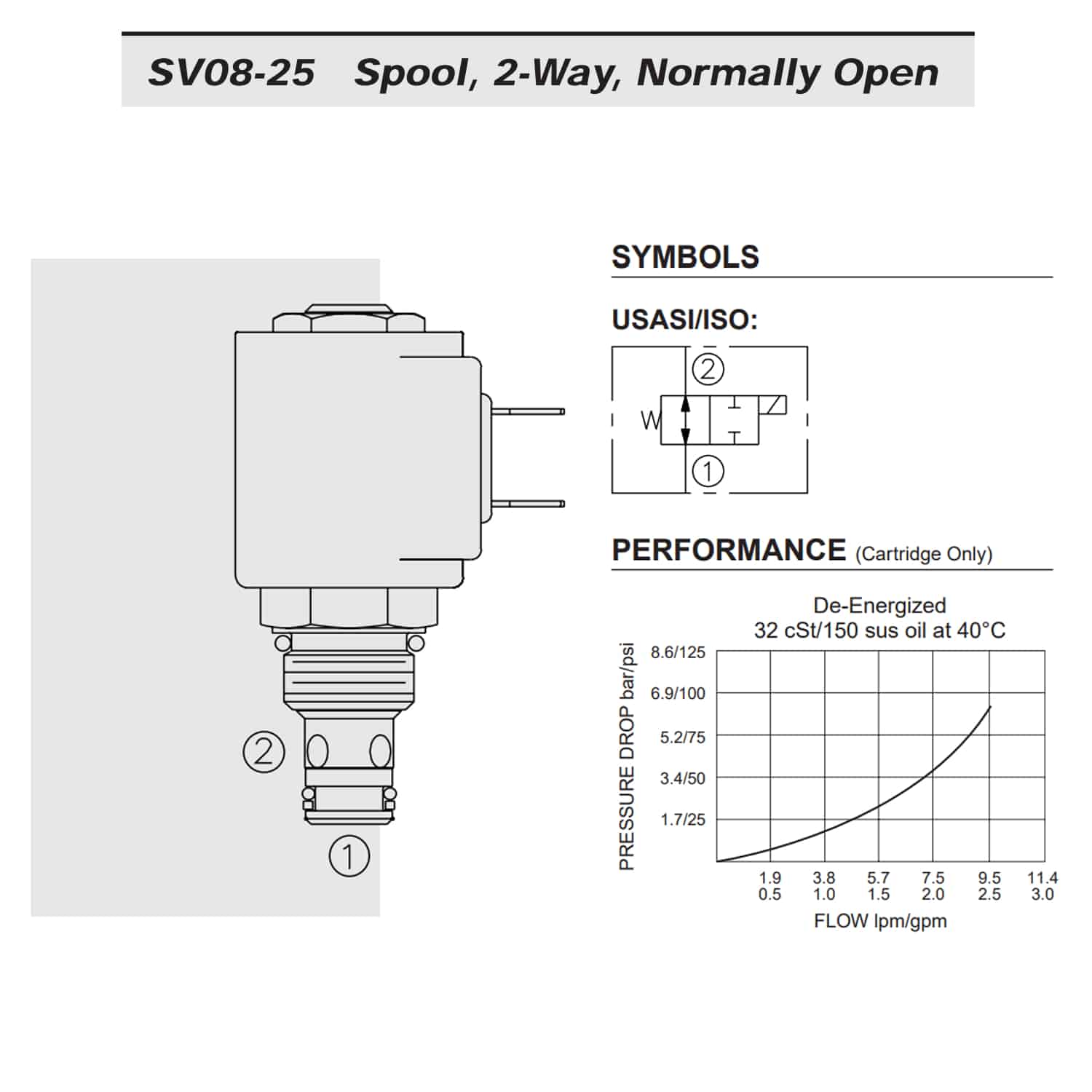

A solenoid-operated, 2-way, normally open, spool-type, direct-acting, screw-in hydraulic cartridge valve, intended for blocking or load-holding in low flow circuits.
When de-energized, the SV08-25 allows flow in both directions.
When energized the spool shifts to close bi-directionally.
Features:
- 2.5 GPM max Flow
- 3000 PSI Rated
- Fits VC08-2 Cavity
- Uses Size 08 (1/2″ Hole) Solenoids
Cartridge Valve Assembly Part Numbers (Manifold & Solenoid Included):
| Cartridge Assembly P/N | Solenoid Coil P/N | Manifold P/N | Voltage | Connection Type |
| SV08-25-6T-N-12ER | 4303612 | 7024860 | 12V DC | Deutsch Connector |
| SV08-25-6T-N-12DL | 6302012 | 7024860 | 12V DC | Dual Wire Leads |
| SV08-25-6T-N-12DS | 6301012 | 7024860 | 12V DC | Dual Spade |
| SV08-25-6T-N-12DG | 6306012 | 7024860 | 12V DC | 3-Prong DIN |
| SV08-25-6T-N-12EY | 4303412 | 7024860 | 12V DC | Metri-Pack 150 |
| SV08-25-6T-N-12DL/W | 6309412 | 7024860 | 12V DC | Weather Pack |
| SV08-25-6T-N-12EL | 4305112 | 7024860 | 12V DC | Dual Wire Leads |
| SV08-25-6T-N-24ER | 4303624 | 7024860 | 24V DC | Deutsch Connector |
| SV08-25-6T-N-24DL | 6302024 | 7024860 | 24V DC | Dual Wire Leads |
| SV08-25-6T-N-24EY | 4303424 | 7024860 | 24V DC | Metri-Pack 150 |
| SV08-25-6T-N-24DG | 6306024 | 7024860 | 24V DC | 3-Prong DIN |
| SV08-25-6T-N-10DS | 6301010 | 7024860 | 10V DC | Dual Spade |
| SV08-25-6T-N-12EY/Z | 4303812 | 7024860 | 12V DC | Metri-Pack 150 |
| SV08-25-6T-N-12ER/Z | 4304012 | 7024860 | 12V DC | Deutsch Connector |
| SV08-25-6T-N-12EG | 4305862 | 7024860 | 12V DC | 3-Prong DIN |
| SV08-25-6T-N-12DL/W/D | 6309737 | 7024860 | 12V DC | Weather Pack |
| SV08-25-6T-N-24DR | 4301524 | 7024860 | 24V DC | Deutsch Connector |
| SV08-25-6T-N-24ER/Z | 4304024 | 7024860 | 24V DC | Deutsch Connector |
| SV08-25-6T-N-24DS | 6301024 | 7024860 | 24V DC | Dual Spade |
| SV08-25-6T-N-115AP | 6315115 | 7024860 | 115V AC | Dual Wire Leads |
| SV08-25-6T-N-115AG | 6316115 | 7024860 | 115V AC | 3-Prong DIN |
| Additional coils w/o assembly P/N | ||||
| 4305872, 6303012, 6309311, 4305124, 4305864, 6309739, 6315024, 1026-43 | ||||
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 3 in |
