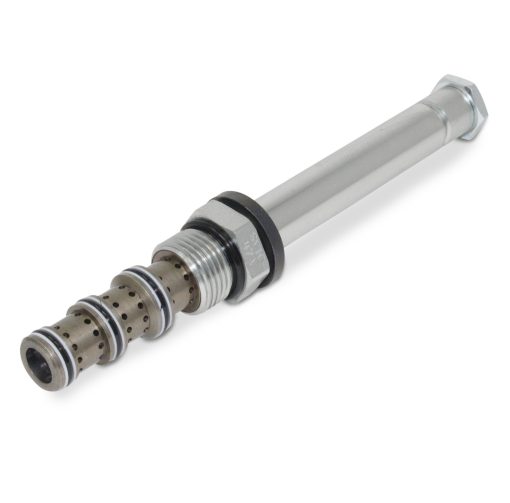

Hydraforce SV10-47B-8T-N-12ER Solenoid Directional Cartridge Valve

SKU: SV10-47B-8T-N-12ER

Hydraforce Part Number: SV10-47B-8T-N-12ER

Directional Valve, 4-Way, 3-Position, Open Center

Solenoid-operated, 4-way, 3-position, direct-acting, spool-type, open center, screw-in
hydraulic cartridge valve.

When de-energized, SV10-47B cylinder ports are open and common to 3 and 1.

When coil #1 is energized, flow is allowed from 3 to 4, and from 2 to 1.

When coil #2 is energized, flow is allowed from 3 to 2, and from 4 to 1.

Features:

5 GPM max Flow

3625 PSI Rated

Uses 2 Hydraforce 4303712 solenoid valve coils
