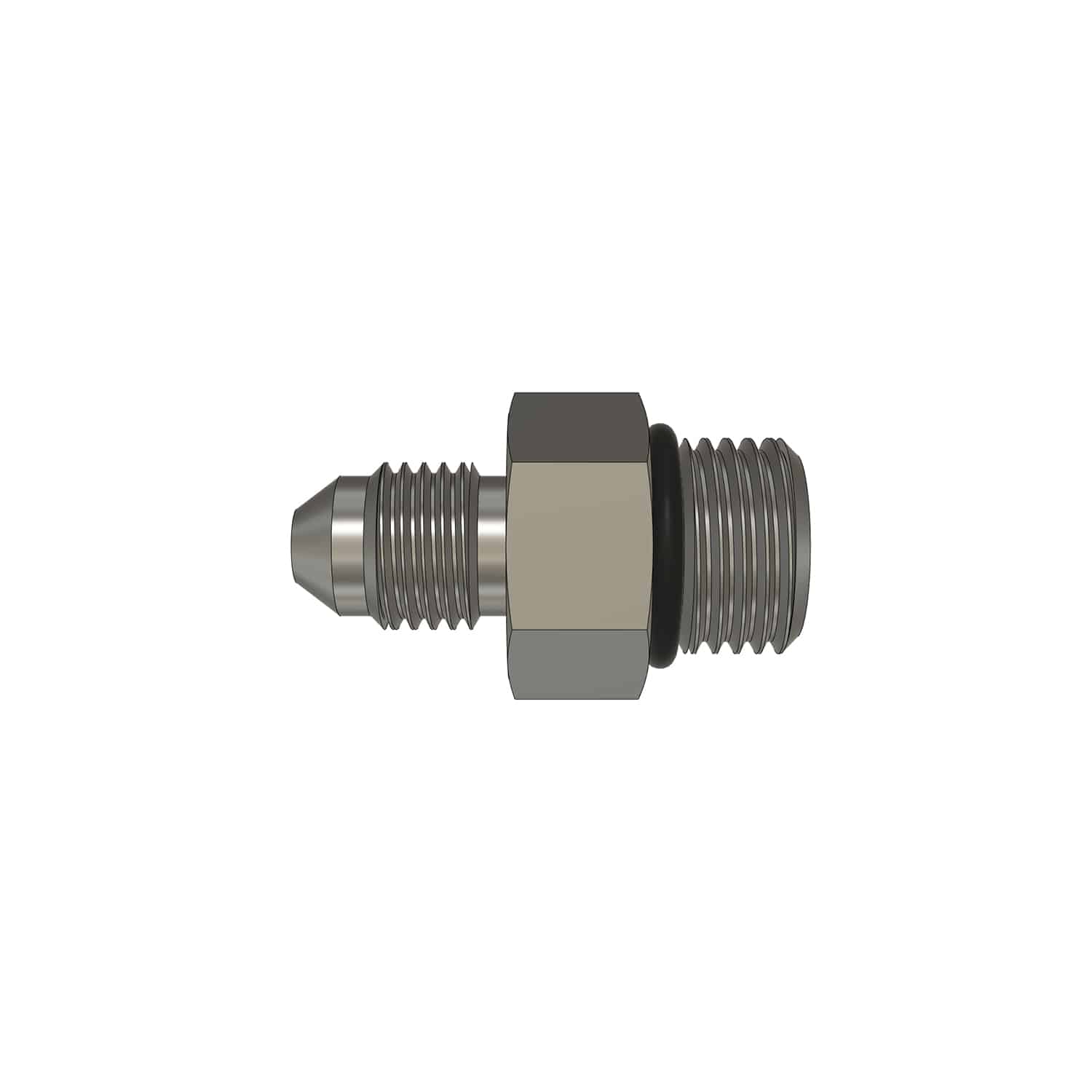

CAD image of 6400-04-06-FG fitting

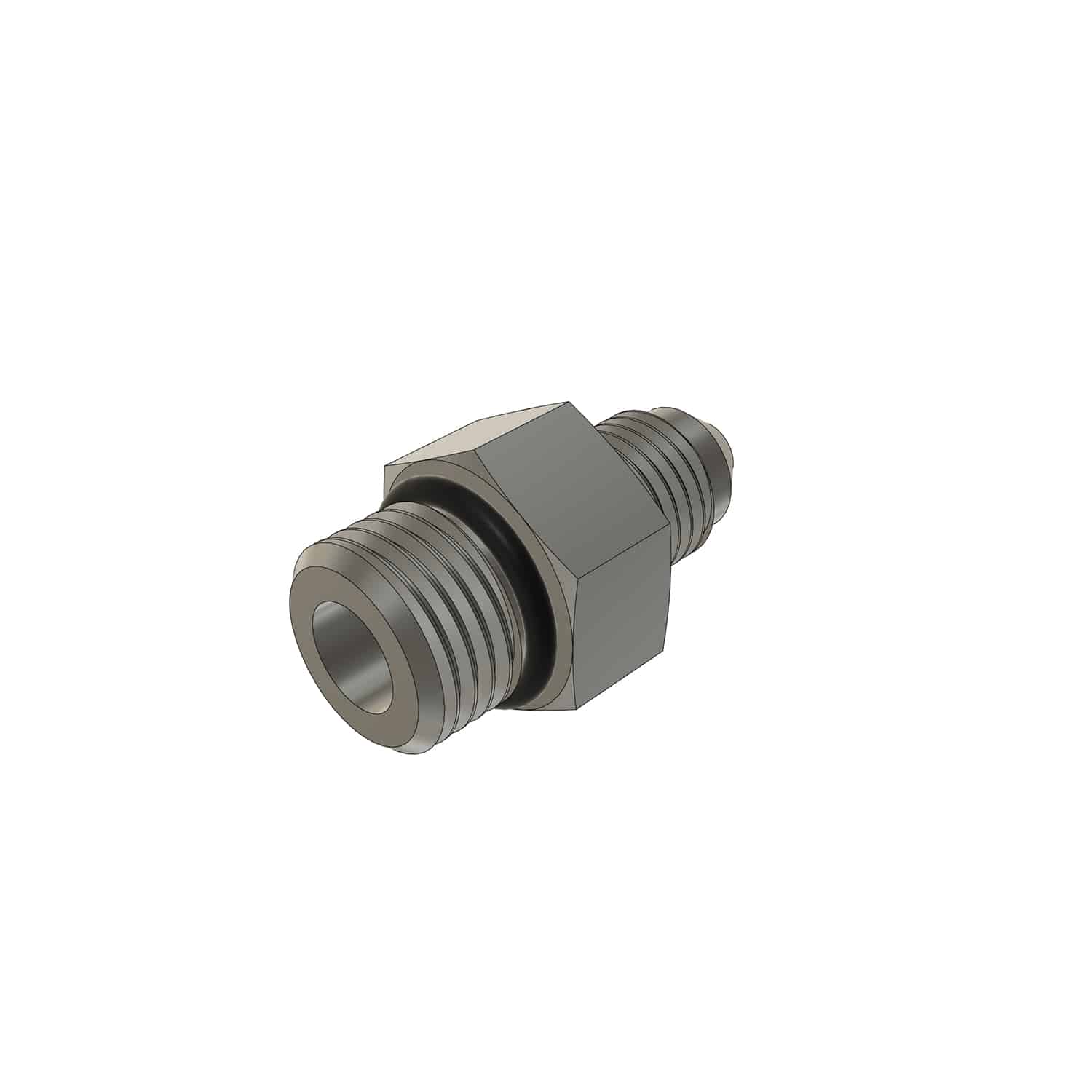

Adapter, JIC Male x SAE/ORB Male - Image 2
CAD image of 6400-04-06-FG fitting

Adapter, JIC Male x SAE/ORB Male

Price range: $1.75 through $6.29

Free Shipping on orders over $75

Adapter Fitting, JIC Male x SAE/O-Ring Boss Male

FREE SHIPPING

SKU: N/A Category: Tags: , ,
  • Hydraulic Adapter Fitting
  • 37 Deg JIC Male to SAE/O-Ring Boss Male
6400-04-06-FG Adapter, 1/4″ JIC Male x #6 SAE/ORB Male
6400-06-06-FG Adapter, 3/8″ JIC Male x #6 SAE/ORB Male
6400-06-08-FG Adapter, 3/8″ JIC Male x #8 SAE/ORB Male
6400-06-10-FG Adapter, 3/8″ JIC Male x #10 SAE/ORB Male
6400-08-06-FG Adapter, 1/2″ JIC Male x #6 SAE/ORB Male
6400-08-08-FG Adapter, 1/2″ JIC Male x #8 SAE/ORB Male
6400-08-10-FG Adapter, 1/2″ JIC Male x #10 SAE/ORB Male
6400-10-08-FG Adapter, 5/8″ JIC Male x #8 SAE/ORB Male
6400-10-10-FG Adapter, 5/8″ JIC Male x #10 SAE/ORB Male
6400-10-12-FG Adapter, 5/8″ JIC Male x #12 SAE/ORB Male
6400-12-12-FG Adapter, 3/4″ JIC Male x #12 SAE/ORB Male

JIC 37° Flare

JIC Thread Chart
Inch size Dash size Thread Size Male Thread O.D. (in) Female thread I.D (in)
3⁄8 -6 9⁄16 – 18 9⁄16 0.56 17⁄32 0.51
1⁄2 -8 3⁄4 – 16 3⁄4 0.75 11⁄16 0.69
5⁄8 -10 7⁄8 – 14 7⁄8 0.88 13⁄16 0.81
3⁄4 -12 1 1⁄16 – 12 1 1⁄16 1.06 1 0.98
7⁄8 -14 1 3⁄16 – 12 1 3⁄16 1.19 1 1⁄8 1.1
1 -16 1 5⁄16-12 1 5⁄16 1.31 1 1⁄4 1.23

SAE Straight Thread O-Ring (ORB)

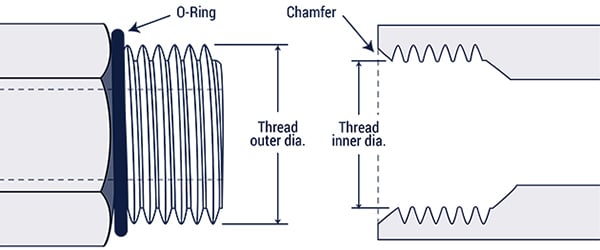

SAE O-Ring Thread Chart
SAE O-Ring Thread Chart
Inch size Dash size Thread Size Male Thread O.D. (in) Female thread I.D (in)
3⁄8 -6 9⁄16 – 18 9⁄16 0.56 17⁄32 0.51
1⁄2 -8 3⁄4 – 16 3⁄4 0.75 11⁄16 0.69
5⁄8 -10 7⁄8 – 14 7⁄8 0.88 13⁄16 0.81
3⁄4 -12 1 1⁄16 – 12 1 1⁄16 1.06 1 0.98
7⁄8 -14 1 3⁄16 – 12 1 3⁄16 1.19 1 1⁄8 1.1
1 -16 1 5⁄16-12 1 5⁄16 1.31 1 1⁄4 1.23
Weight .2 lbs
Dimensions 2 × 2 × 2 in
Size

3/8" JIC Male x #6 SAE/ORB Male, 3/8" JIC Male x #8 SAE/ORB Male, 3/8" JIC Male x #10 SAE/ORB Male, 1/2" JIC Male x #8 SAE/ORB Male, 1/2" JIC Male x #10 SAE/ORB Male, 5/8" JIC Male x #8 SAE/ORB Male, 5/8" JIC Male x #10 SAE/ORB Male, 3/4" JIC Male x #12 SAE/ORB Male, 1/4" JIC Male x #6 SAE/ORB Male, 1/2" JIC Male x #6 SAE/ORB Male, 5/8" JIC Male x #8 SAE/ORB Male, 5/8" JIC Male x #12 SAE/ORB Male
