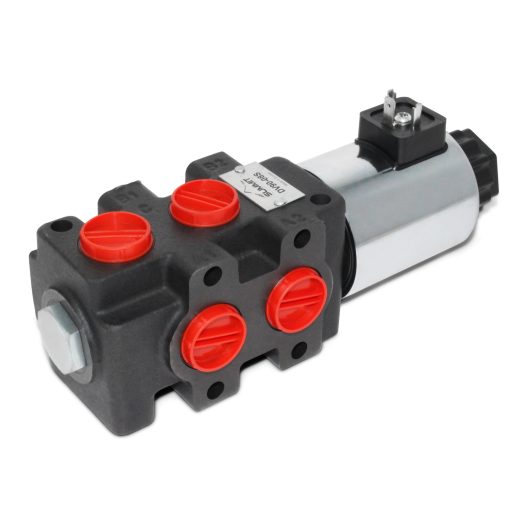

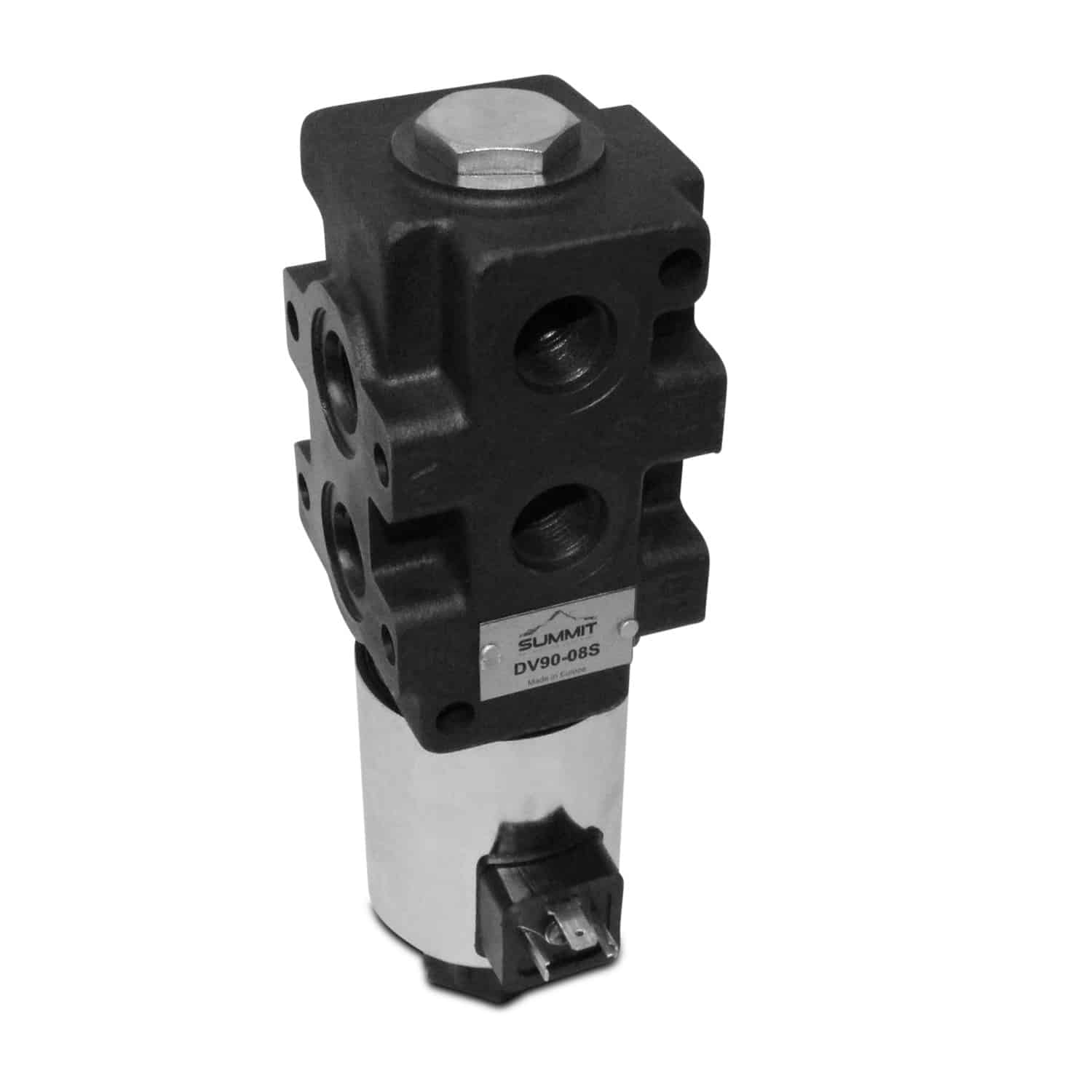

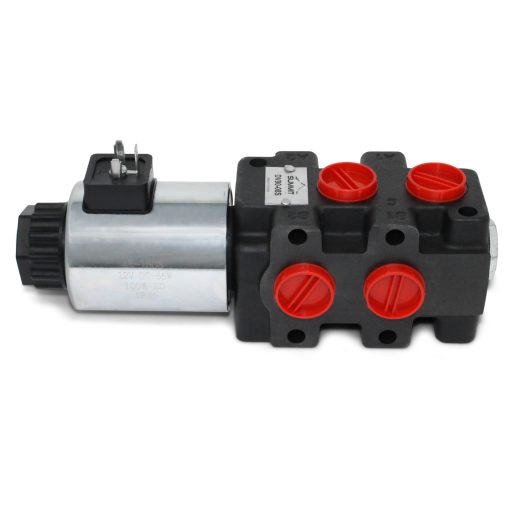

Hydraulic Diverter Valve w/ Switch, Flat Face ISO 16028 Couplers. 24 GPM

SKU: DV90-08-M-FF

This solenoid operated valve allows you to easily add another hydraulic circuit such as a grapple to your equipment.  Fluid is allowed to pass through Ports A1/A2 to B1/B2, when the button on the included momentary switch is pressed, the flow of fluid will then switch from the primary circuit to the auxiliary circuit (C1/C2).

Benefits:

• Includes Momentary pushbutton switch that easily attaches to your handle
• 3 Sets of 1/2” Body Flat Face Couplers with Fittings
• Works with Double or Single Acting Cylinders
• Can be used on Open, Closed or FPC hydraulic systems
• Stackable valves can be combined to add up to 3 additional functions

Features:

• 12v DC

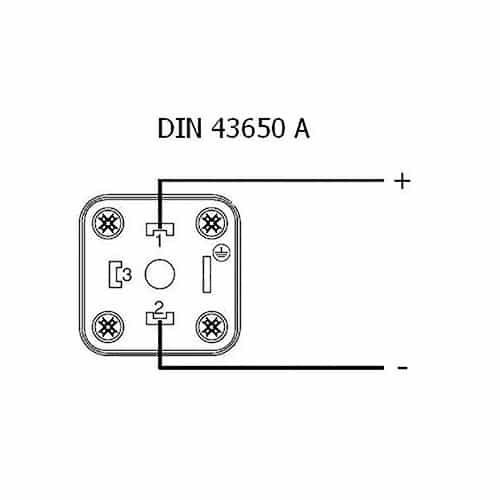

• DIN 43650 Connector
• 6 Ports with #8 SAE (3/4”-16) Threads
• Max Operating Pressure: 3625 PSI
• Flow Rating: 24 GPM
• Switch is made in USA; Valve is made in Europe

Kit Includes:

• 12v Soleniod Operated Valve

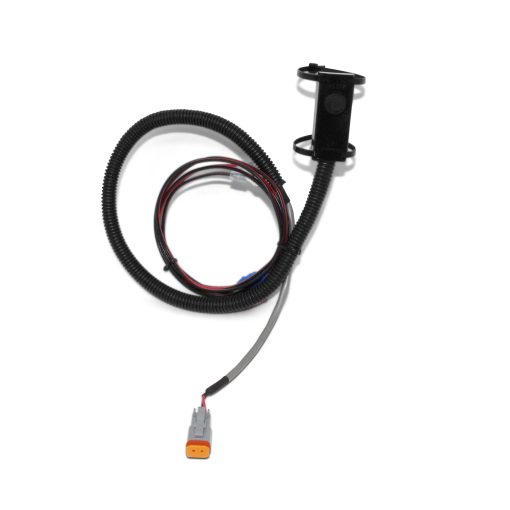

• Momentary Push Button Switch (32” Long)

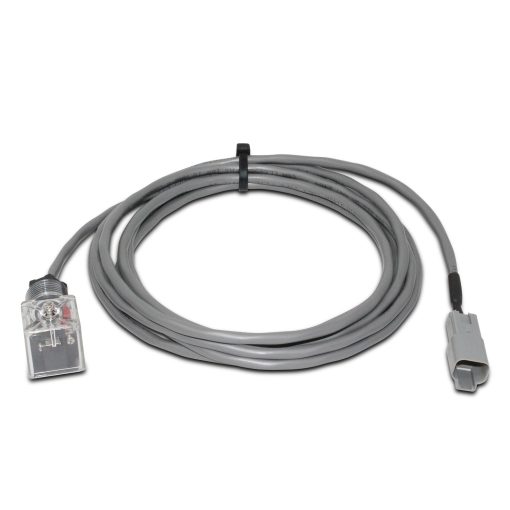

• 10’ Extension Harness (20’ extension harness also available)
• 3 – Female ISO 16028 Flat Face Couplers (1/2” Body)
• 3 – Male ISO 16028 Flat Face Couplers (1/2” Body)
• 2 – 90 deg elbows and fittings with extra o-rings
• 3 – Sets of dust caps and plugs

Optional Mounting Plate Bracket or Clamp Bracket Available
