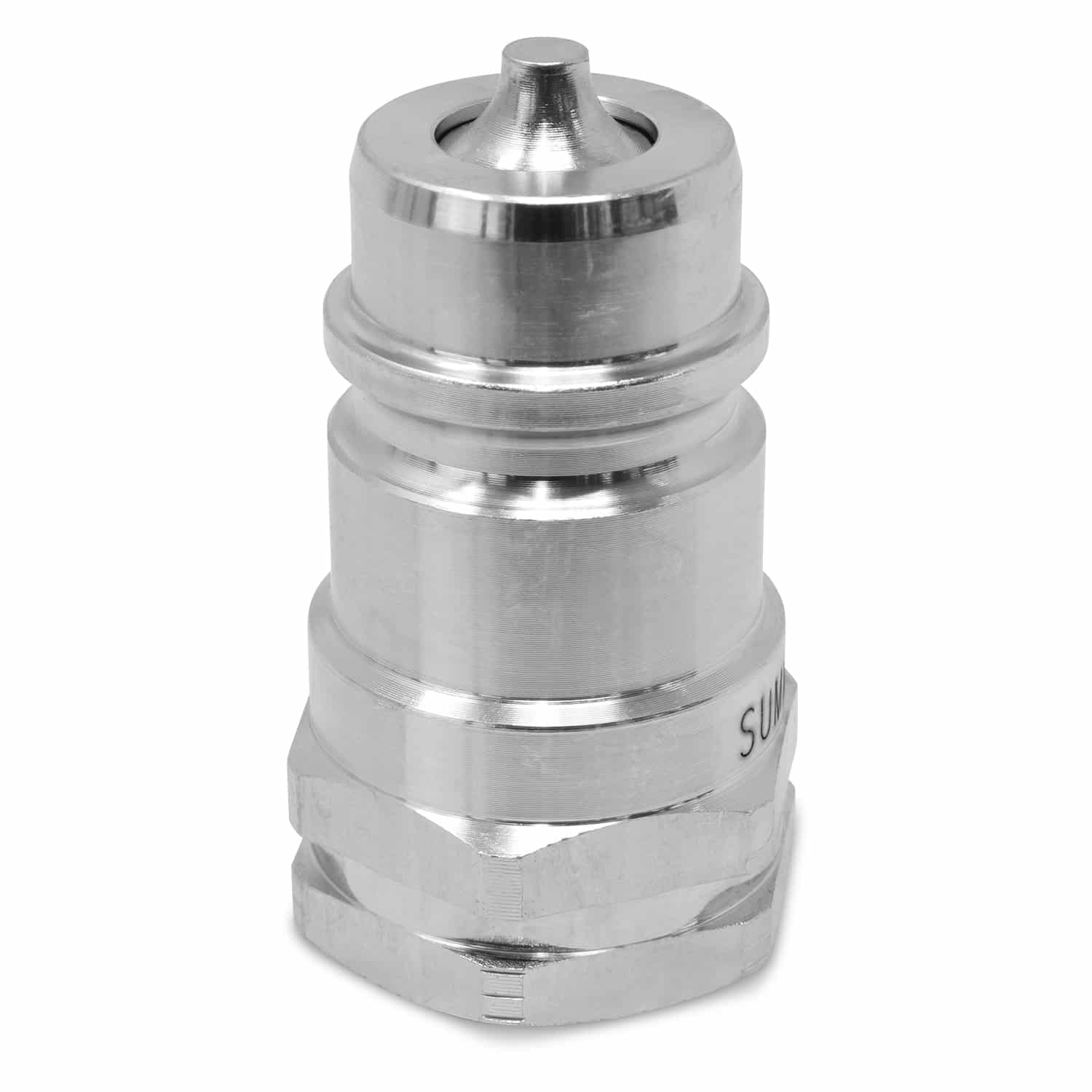

1/2″ Ag Hydraulic Quick Connect Male Coupler, Poppet Valve, #8 SAE (3/4″-16 ORB) Thread
$9.95
Free Shipping
1/2″ Body, 1/2″ SAE O-Ring (3/4″-16) Thread, Ag Hydraulic Quick Connect Male Coupler, Poppet Valve
We also carry a 1/2″ Body, 1/2″ SAE O-Ring (3/4″-16) Thread Quick Coupler in a Flat Face Style.
In stock
| Quantity | Per Item Price |
|---|---|
| 2-3 | $9.15 |
| 4-9 | $8.96 |
| 10+ | $8.46 |
SKU: AG12M-08S
This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all 1/2″ body ISO 5675 series / Pioneer style couplers including ball seat valve, poppet seal, and 1/2″ Body ISO 7241-A couplers.
Body Size: 1/2″ Body
Thread Size: #8 SAE (also know 3/4-16 ORB Thread), Poppet Valve
This 1/2″ male coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.
Features:
- Nominal Flow Rate: 12 GPM
- Max Flow Rate: 24 GPM
- 3600 PSI Rating
- Hardened Steel Plugs
- 23,000 PSI Burst Rating (Coupled)
Interchangeable with:
| Manufacturer | Male |
| SUMMIT | AG12M-08S |
| Parker 4000 Series | 8010-15P |
| Safeway S20 Series | S71-15P |
| Faster NV/NS Series | NV 12-12SAE F |
| Dixon AG Series | AG4OF4-PV |
What’s Included:
- Male Coupler
| Weight | 0.21 lbs |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| ISO Standard | |
| Style | Agricultural |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | #8 |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
