Hydraulic Diverter Valve w/ Switch, 1/2″ AG ISO 5675 Couplers, 24 GPM

Hydraulic Multiplier Selector Diverter Solenoid Valve w/ Switch & AG Couplers

SKU: DV90-08-M-AG

This solenoid operated valve allows you to easily add another hydraulic circuit such as a grapple to your equipment.  Fluid is allowed to pass through Ports A1/A2 to B1/B2, when the button on the included switch is pressed, the flow of fluid will then switch from the primary circuit to the auxiliary circuit (C1/C2).

Benefits:

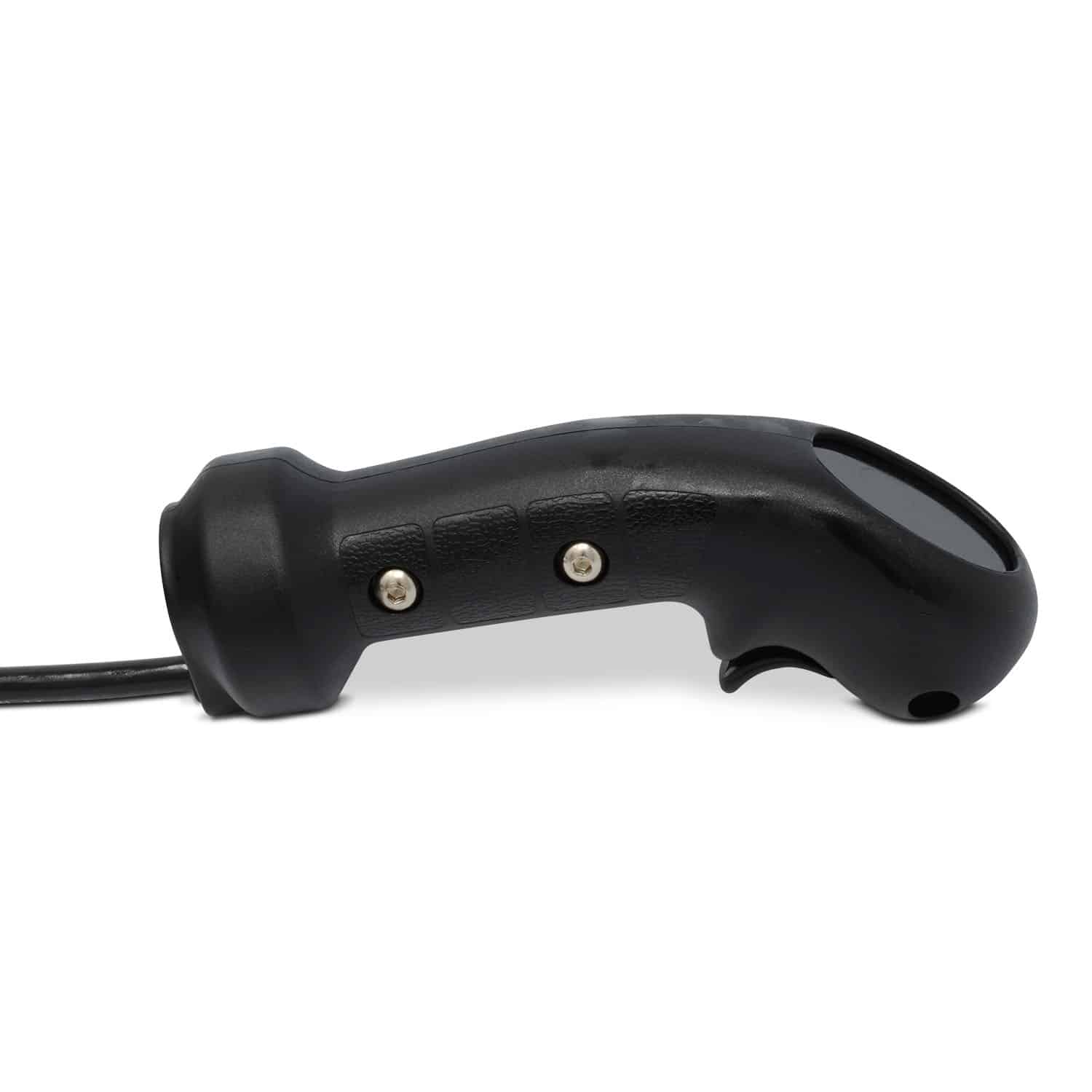

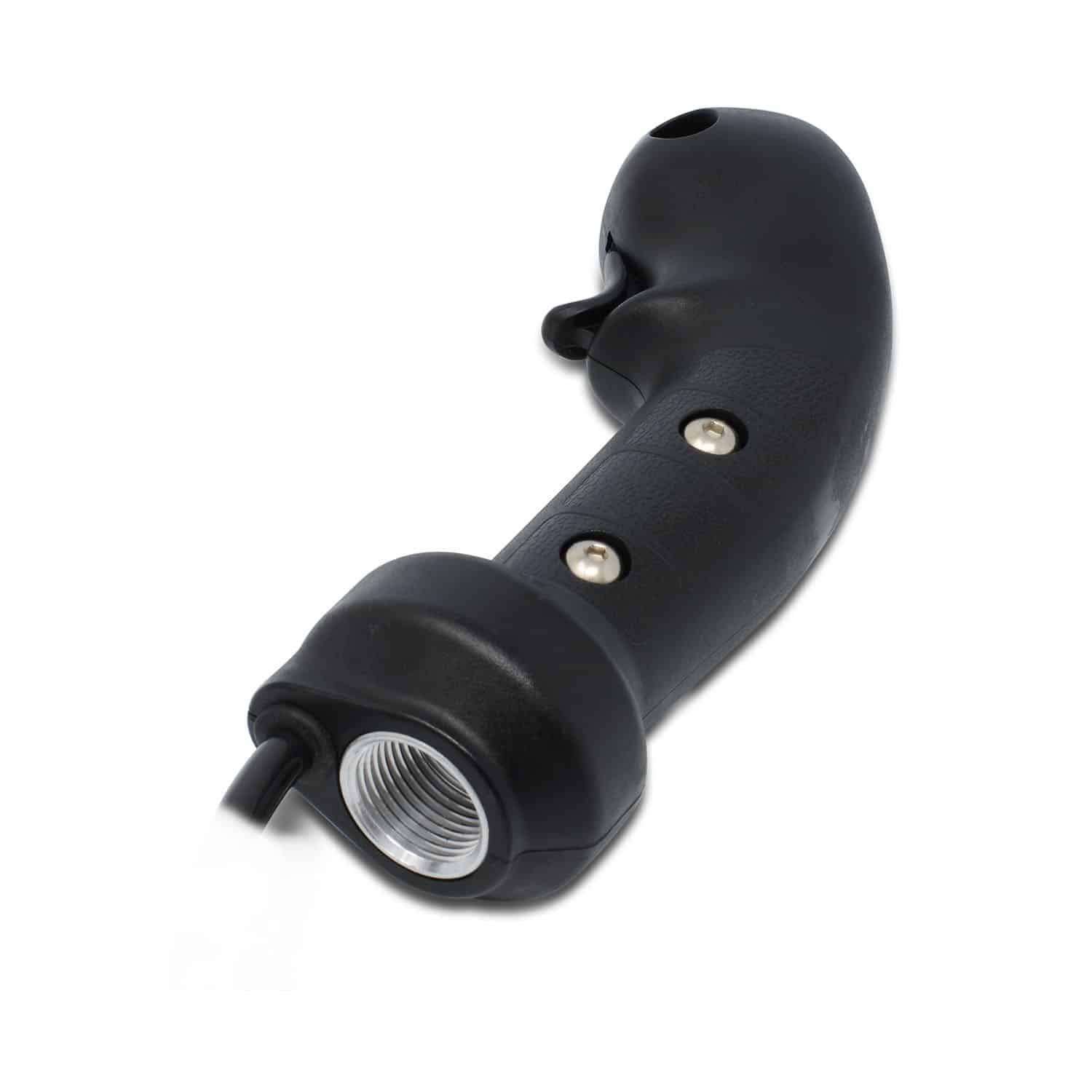

• Select a momentary switch or momentary Lever Switch that easily attaches to the handle of your equipment or a maintained lighted rocker switch with a mounting bracket
• 1/2” ISO / Pioneer Style Couplers and fittings
• Works with Double or Single Acting Cylinders for Open, Closed or FPC hydraulic systems
• Stackable valves can be combined to add up to 3 additional functions

Features:

• 12v DC DIN 43650 Connector
• 6 Ports with #8 SAE (3/4”-16) Threads
• Max Operating Pressure: 3625 PSI
• Flow Rating: 24 GPM
• Switch is made in USA; Valve is made in Europe

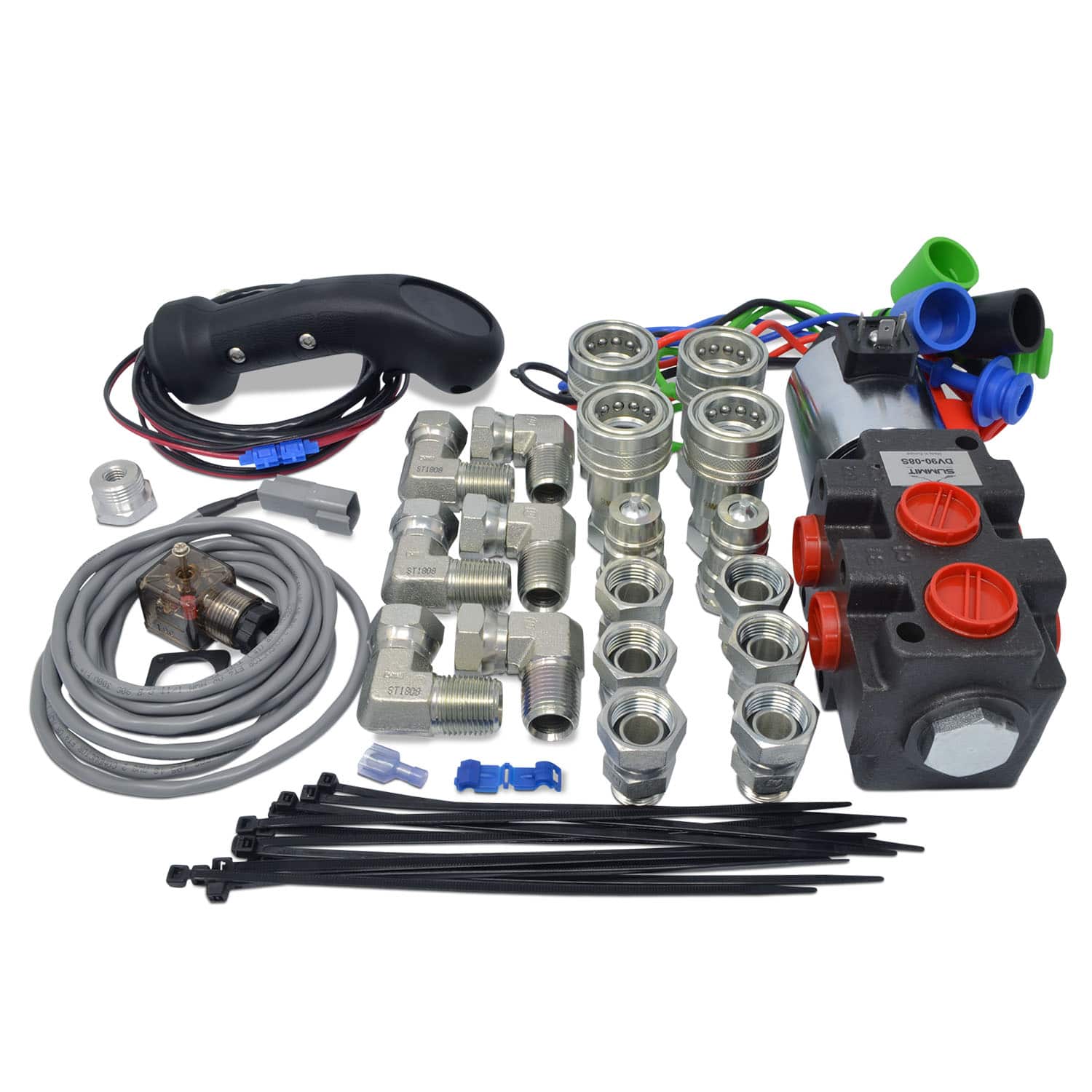

Kit Includes:

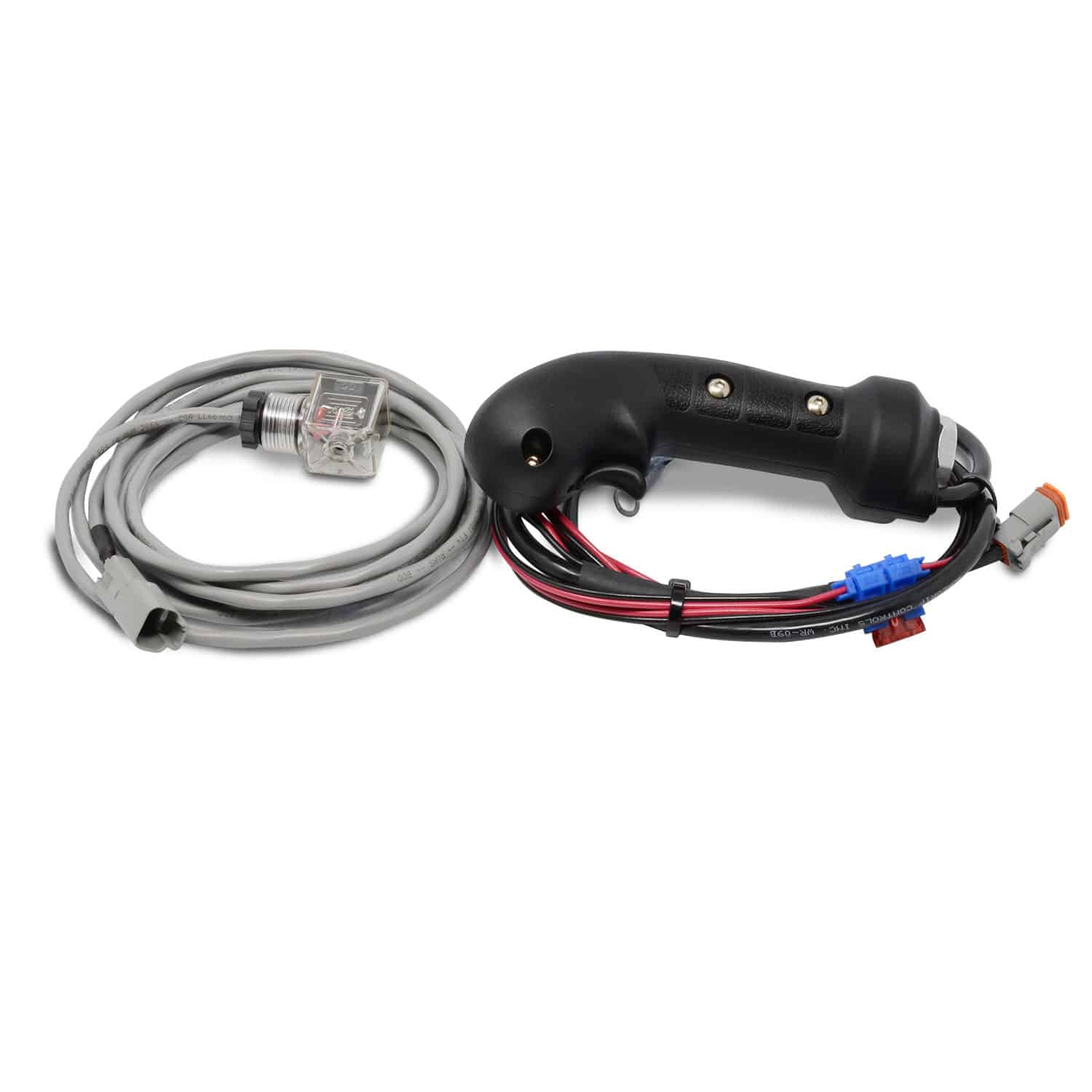

• 12v Soleniod Operated Valve Momentary Push Button Switch (32” Long) OR Momentary Lever Switch (32” Long) OR Maintained Switch Box (36″ long wire lead)
• 10’ Extension Harness (20’ extension harness available)
• 4 – Female ISO Ag Couplers (1/2” Body)
• 2 – Male ISO Ag Couplers (1/2” Body)
• 6 – 90 deg elbows with 1/2″ NPT male to female thread
• 6 – Adapters; #8 SAE Male to 1/2″ NPT Female Thread
• 4 – Sets of colored dust caps and plugs

Optional Mounting Plate Bracket or Clamp Bracket Available
