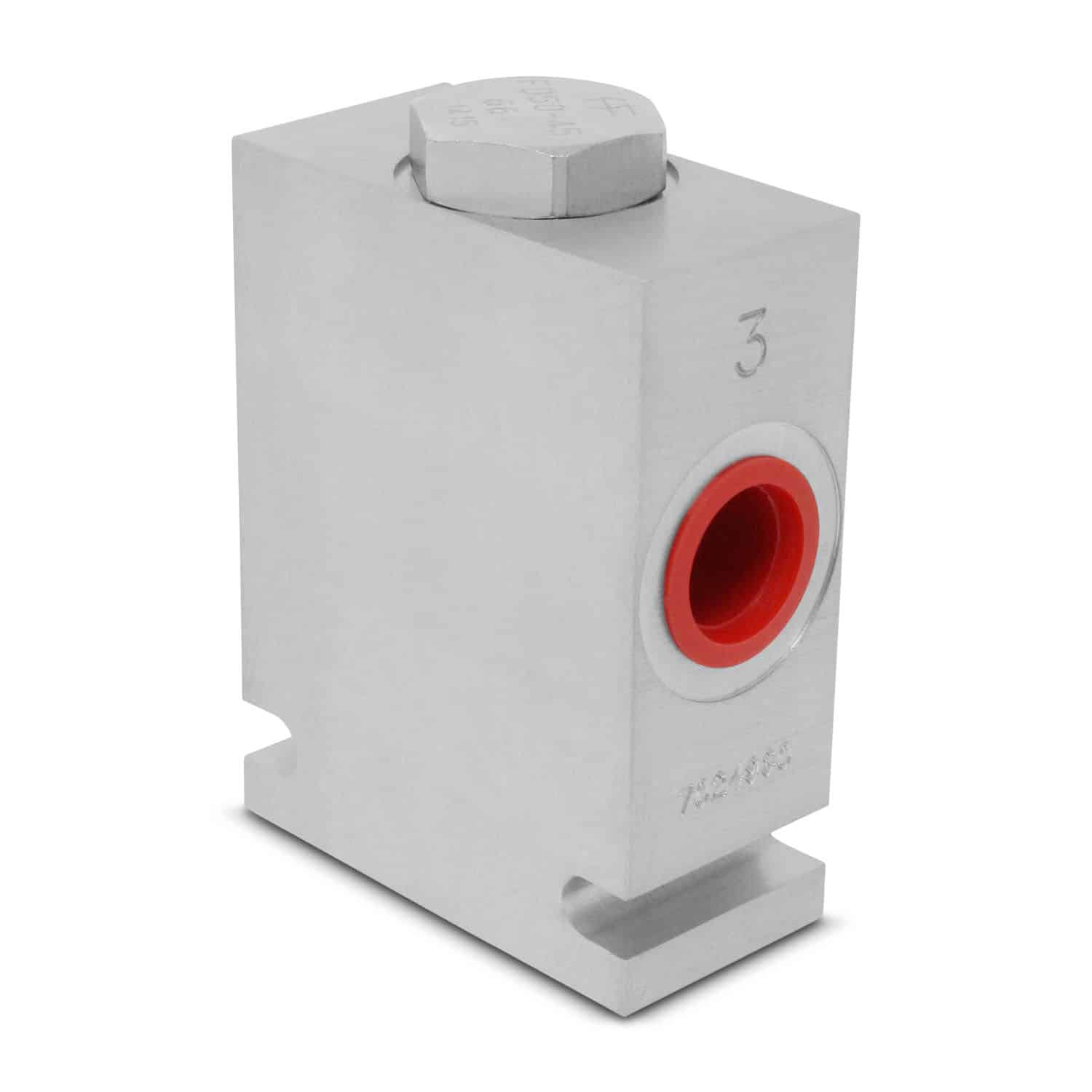

Hydraulic Pump Flow Divider / Combiner, 50:50, 4-12 GPM

SKU: FD50-45-8D-N-66

HydraForce P/n: FD50-45-8DD-N-66

Operation:

In the dividing mode, this flow divider will divert input flow from port 3 to ports 2 and 4, with a 50:50 ratio, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from 2 and 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at “bottomed” conditions in cylinder applications and at “stalled” conditions in motor applications.

Features:

• Hardened parts for long life.
• Quiet, modulated response.
• Wide operating flow range.
• Synchronizing in dividing and combining modes.
• Floating cage — high installation torque.
• Ports 4 & 2: #6 SAE (9/16”-18 ORB Thread)
• Port 3 (inlet): #8 SAE (3/4″-16 ORB Thread)
• Buna N seals
• Made in USA

Specifications:

• Operating Pressure: 5000 PSI
• Burst Pressure: 16,000 PSI
• Input Flow: 4 – 12 GPM (15 – 45 lpm); Ratio: 50:50
• Synchronizing Flow: Approximately 10% of maximum inlet flow
• Flow Accuracy: 10% of inlet flow
• Operating Temperature: -40 to 100°C (-40 to 212°F)
