Hydraulic Selector Diverter Valve w/ Switch, 30 GPM

SKU: DV90-10-M

This solenoid operated valve allows you to easily add another hydraulic circuit such as a grapple to your equipment.  Fluid is allowed to pass through Ports A1/A2 to B1/B2, when the button on the included momentary switch is pressed, the flow of fluid will then switch from the primary circuit to the auxiliary circuit (C1/C2).

Benefits:

• Includes Momentary pushbutton switch that easily attaches to your tractors handle or Maintained Rocker Switch
• Works with Double or Single Acting Cylinders
• Can be used on Open, Closed or FPC hydraulic systems
• Stackable valves can be combined to add up to 3 additional functions
• #10 SAE O-Ring ports ensure solid seal and prevent blockages

Features:

• 12v DC
• DIN 43650 Connector
• 6 Ports with #10 SAE (7/8”-14) Threads
• Max Operating Pressure: 3625 PSI
• Flow Rating: 30 GPM
• Switch is made in USA; Valve is made in Europe

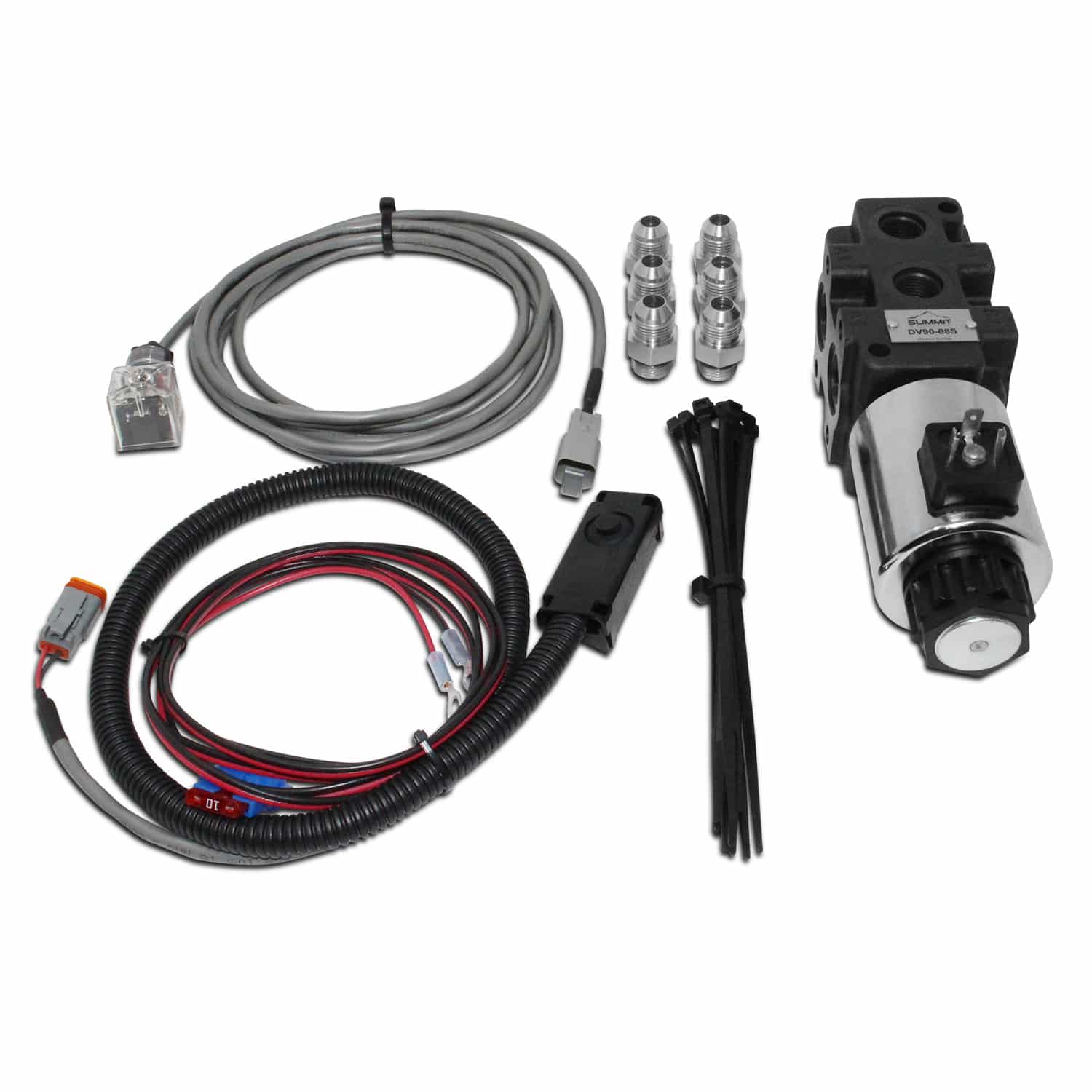

Kit Includes:

• 12v Soleniod Operated Valve
• Momentary Push Button Switch (32” Long) OR Momentary Lever Switch (32” Long) OR Maintained Switch Box (36″ long wire lead)
• 10’ Extension Harness (20’ extension harness also available)
• 6 – 5/8” JIC Adapters

Optional Mounting Plate Bracket or Clamp Bracket Available
