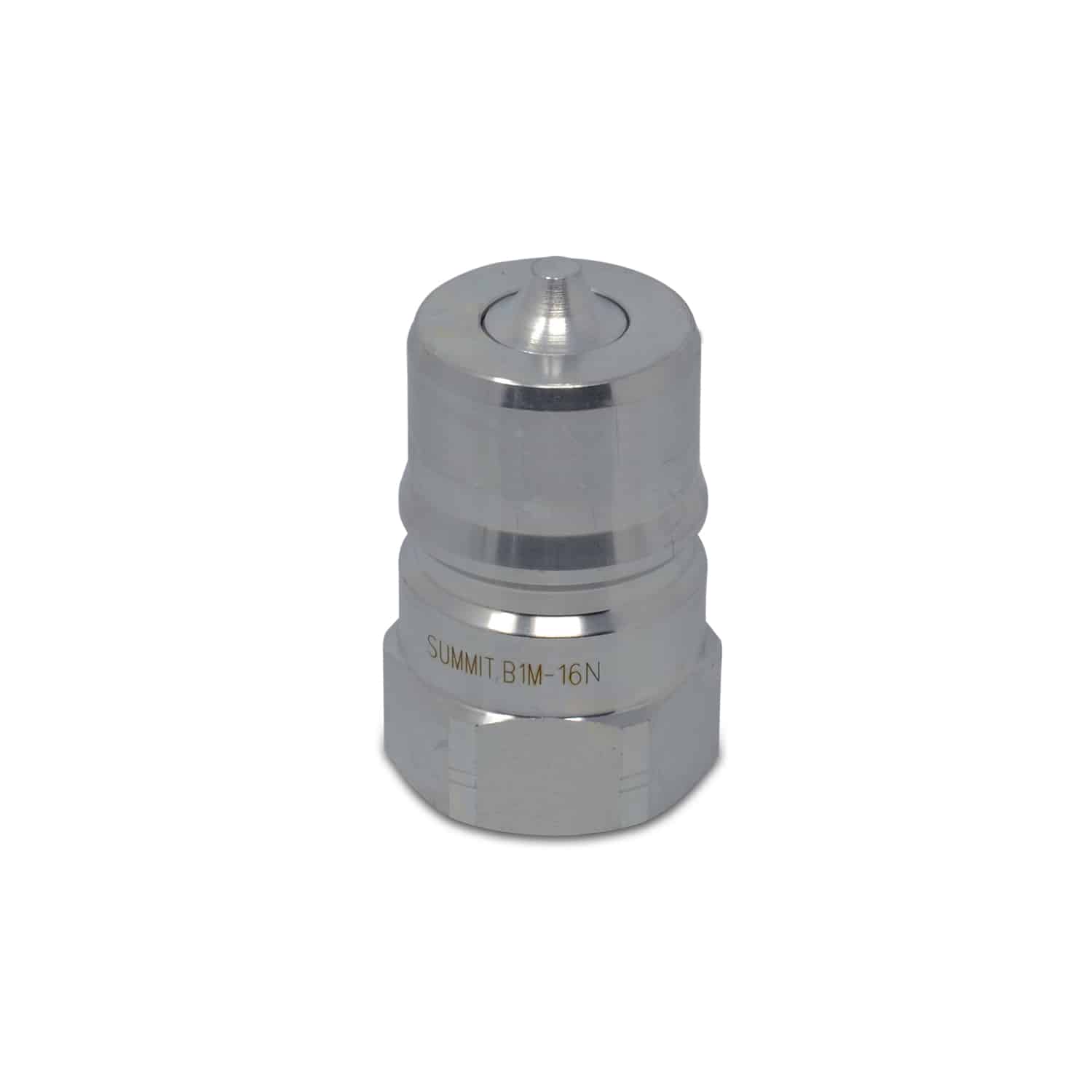

SKU: B1M-16N
The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.
Body Size: 1″ Body
Thread Size: 1″ NPT Thread, Poppet Valve
Benefits:
- Body: Carbon Steel
- Finishing: ZN-Fe (CRIII) Plating
- Seals: NBR standard seals
- Spring Material: 304 Stainless Steel
- Radial Locking Balls
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- Temperature Range: -15°F to +400°F
Features:
- 2000 PSI Rating
- Nominal Flow Rate: 50 GPM
- Max Flow Rate: 68.68 GPM
- Male Face Diameter 1.46” (65mm)
- Male Length: 2.9” (105mm)
- Hex: 1.60” (40.6mm)
| Manufacturer | Male |
| SUMMIT | BB1M-16N |
| Parker 60 Series | BH8-61 |
| Safeway BS10 Series | BS101-8 |
| Faster HNV Brass | HNV 1 NPT M 5V |
| Snap-Tite 72 Series | B72N16-16F |
| Stucchi IRBO Series | M IRBO100 NPT 804501111 |
| Dixon H-Series | H8F8-B |
| Eaton HK Series | B8KP36 |
| DNP HNV Series | HNV-B-16-16-N-NPT |
| Weight | 1.5 lbs |
|---|---|
| Style | ISO 7241-B |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
