SKU: 4100F-24N
Summit 1-1/2″ Wet-Line / Wing Nut Couplers are designed for industrial applications that require couplings to be connected and disconnected under pressure with little to no fluid loss. Wet-line couplers are commonly used on live bed / dump trailer wet-line hydraulic systems and other heavy duty applications.
Applications:
- Dump Trailers
- Live Bed Trailers
- Mobile Drilling Rigs
- Sand and salt spreaders
- Oil Well Equipment
- Heavy Equipment

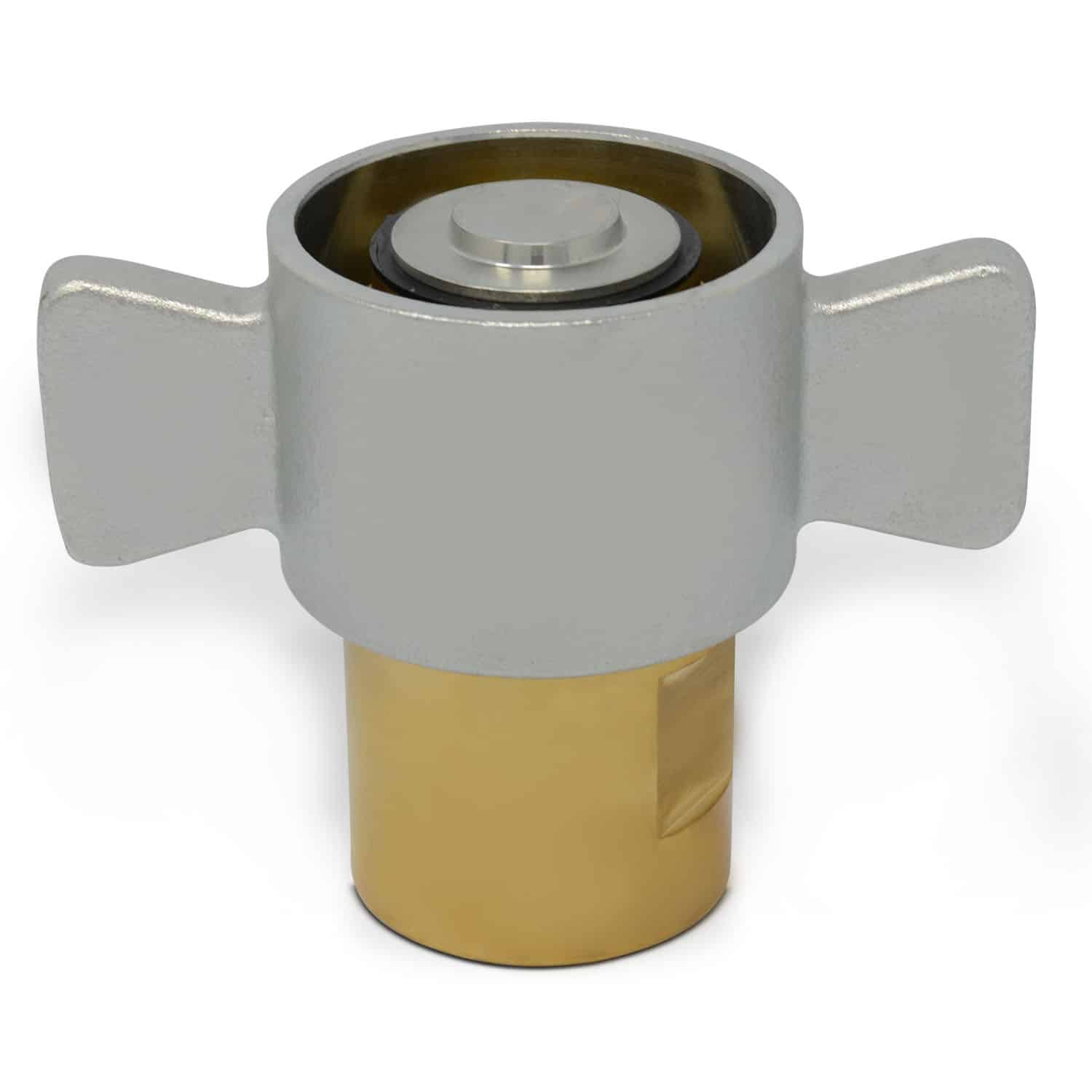

This 1-1/2″ female coupler connects to its male equivalent. We also carry a complete set, including a single male and single female coupler.
Features:
- Brass body coupler and nipple prevents corrosion
- Heavy-duty steel sleeve and wing nut
- Nitrile seal with Teflon backup
- 3000 PSI working pressure rating
- 1-1/2″ NPT Female Pipe Thread
- Nominal Flow Rate: 110 GPM
Our quick connect couplers are compatible with the following:
| Manufacturer | Female |
| SUMMIT | 4100F-24N |
| Parker 6100 Series | 6125-24 |
| Eaton Aeroequip 5100 Series | 5100-S5-24B |
| Dixon W Series | 12WF12-B |
| Faster FB Series | FB 24/112NPT F5 |
| Snap-Tite 78 Series | B78C24-24F |
| Stucchi W Series | 100610024 N51WS-24-24 NPT |
| DNP | VFF-24-24-C-NPT |
What’s Included:
- Female Wet Line Coupler
| Weight | 3.58 lbs |
|---|---|
| Style | Wet Line |
| Body Size | 1-1/2" |
| Thread Type | |
| Thread Size | 1-1/2" |
| Body Material | Brass |
| Locking Type | Screw |
