SKU: 4100-20N-SET
Summit 1-1/4″ Wet-Line / Wing Nut Couplers are designed for industrial applications that require couplings to be connected and disconnected under pressure with little to no fluid loss. Wet-line couplers are commonly used on live bed / dump trailer wet-line hydraulic systems and other heavy duty applications.
Applications:
- Dump Trailers
- Live Bed Trailers
- Mobile Drilling Rigs
- Sand and salt spreaders
- Oil Well Equipment
- Heavy Equipment

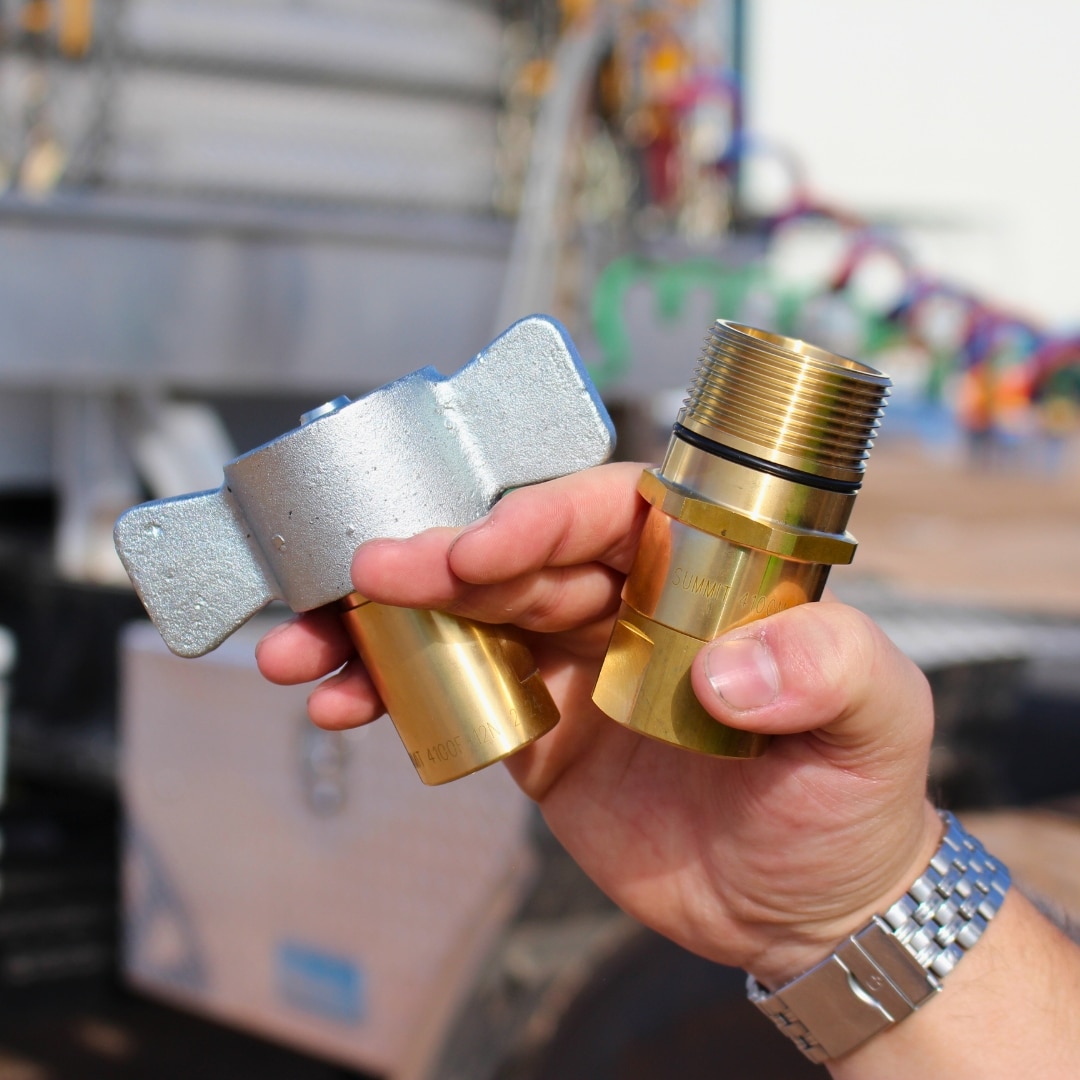

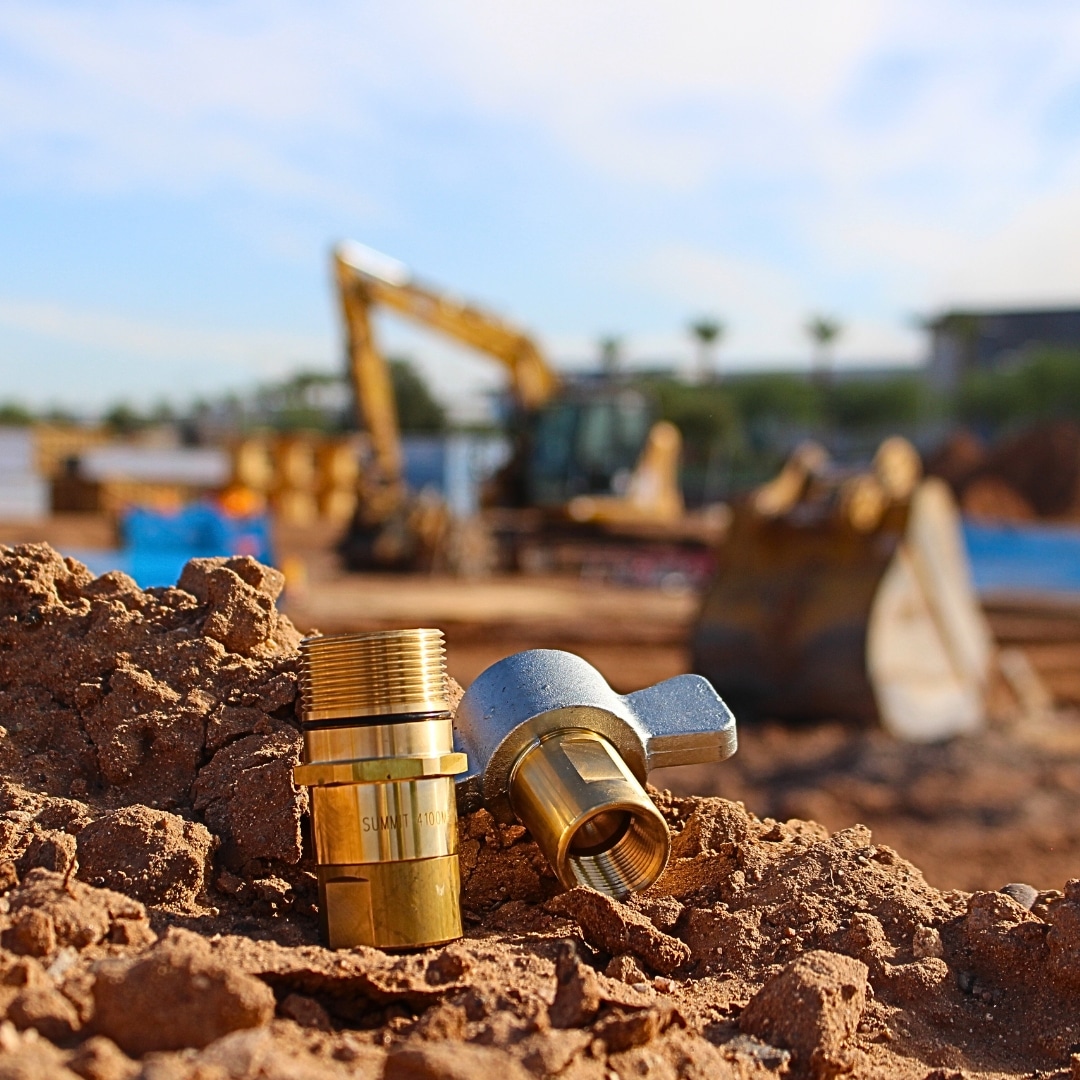

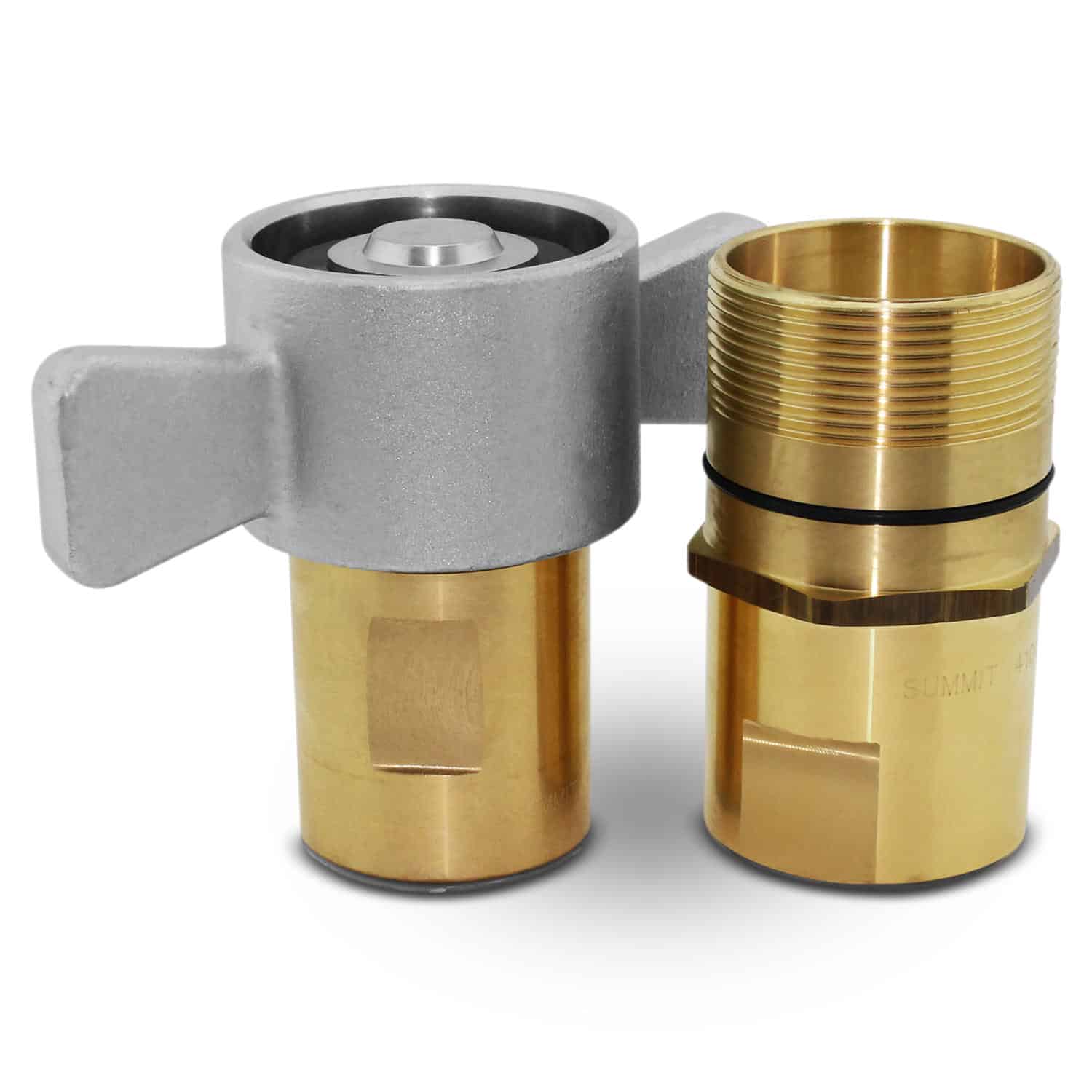

This 1-1/4″ coupler set consists of a male and female quick coupler.
Features:
- Brass body coupler and nipple prevents corrosion
- Heavy-duty steel sleeve and wing nut
- Nitrile seal with Teflon backup
- 3000 PSI working pressure rating
- 1-1/4″ NPT Female Pipe Thread
- Nominal Flow Rate: 80 GPM
Our quick connect couplers are compatible with the following:
| Manufacturer | Male | Female | SET |
| SUMMIT | 4100M-20N | 4100F-20N | 4100F-20N-SET |
| Parker 6100 Series | 6105-20 | 6125-20 | 6100-20 |
| Eaton Aeroequip 5100 Series | 5100-S4-20B | 5100-S5-20B | 5101-20B |
| Dixon W Series | W10F10-B | 10WF10-B | |
| Faster FB Series | FB 20/114NPT M5 | FB 20/114NPT F5 | |
| Snap-Tite 78 Series | B78N20-20F | B78C20-20F | |
| Stucchi W Series | 100610120 N51WS-20-20 NPT |
100610020 C51WS-20-20 NPT |
|
| DNP | VFF-20-20-N-NPT | VFF-20-20-C-NPT |
What’s Included:
- Female Wet Line Coupler
- Male Wet Line Coupler
| Weight | 5 lbs |
|---|---|
| Dimensions | 8 × 7 × 5 in |
| Style | Wet Line |
| Body Size | 1-1/4" |
| Thread Type | |
| Thread Size | 1-1/4" |
| Body Material | Brass |
| Locking Type | Screw |
