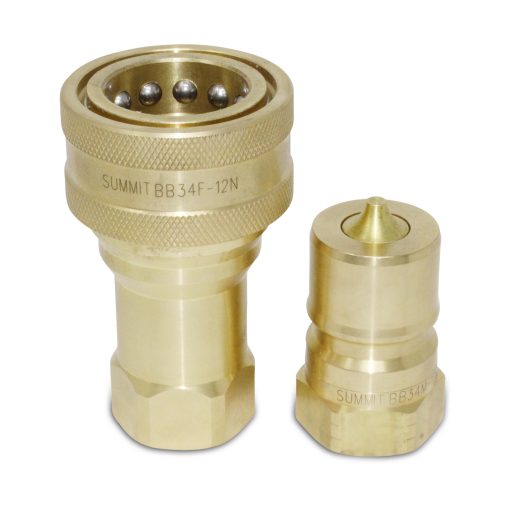

SKU: BB34-12N-SET
Size: 3/4″ Body, 3/4″ NPT Thread, Poppet Valve
Features:
- Body Material: Brass material for corrosion resistance
- Spring Material: 304 Stainless Steel
- Locking Ball Material: 316 Stainless Steel
- Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
- Interchangeable with all ISO 7241 B series couplings
- 2,000 PSI Rating
- Nominal Flow Rate: 28 GPM
- Max Flow Rate: 58.12 GPM
- Seal Type: Viton FKM
- Temperature Range: -15°F to +400°F
- Female Face Diameter 2.05” (44mm)
- Female Length: 3.54” (90mm)
- Hex: 1.34” (27mm)
- Male Face Diameter 1.24” (31.5mm)
- Male Length: 2.28” (58mm)
Applications:
- Hydraulic fluids
- Water
- Diesel / Petroleum
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | BB34M-12N | BB34F-12N |
| Parker 60 Series | BH6-61 | BH6-60 |
| Safeway BS10 Series | BS101-6 | BS105-6 |
| Faster HNV Brass | HNV 34 NPT M 5V | HNV 34 NPT F 5V |
| Snap-Tite 72 Series | B72N12-12F | B72C12-12F |
| Stucchi IRBO Series | M IRBO34 NPT 804501109 |
F IRBO34 NPT 804501108 |
| Dixon H-Series | H6F6-B | 6HF6-B |
| Eaton HK Series | B6KP31 | B6HP31 |
| DNP HNV Series | HNV-B-12-12-N-NPT | HNV-B-12-12-C-NPT |
What’s Included:
- Female Coupler
- Male Coupler
https://staging.summit-hydraulics.com/product/iso-7241-b-quick-couplers-dust-cap-set/
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 5 × 5 in |
| Style | ISO 7241-B |
| Body Size | 3/4" |
| Thread Type | |
| Thread Size | 3/4" |
| Body Material | Brass |
| Locking Type | Sleeve |
