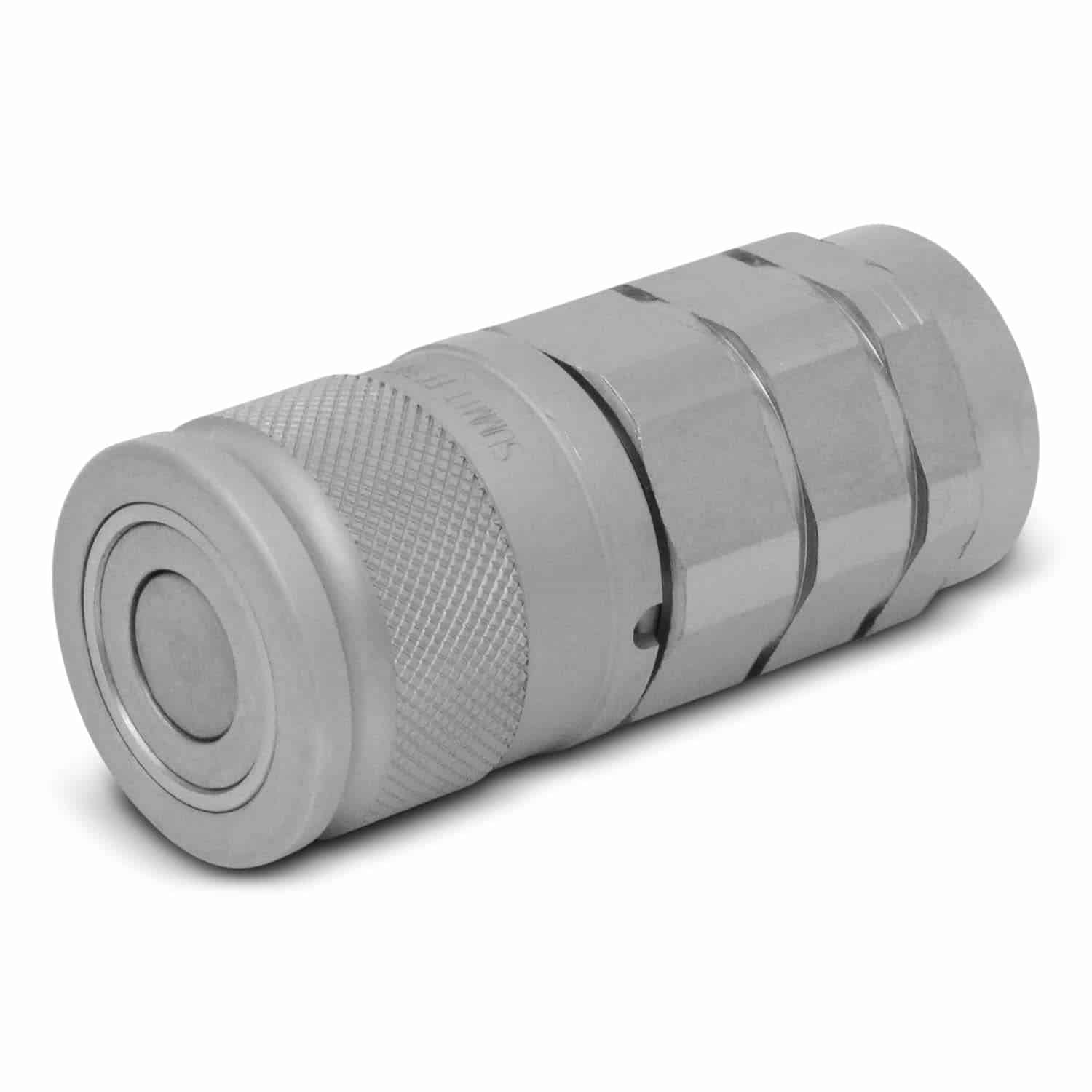

3/8″ Flat Face Hydraulic Quick Connect Female Coupler, 1/2″ NPT Thread

SKU: FF38F-08N

Size: 3/8″ Body with 1/2″ NPT Thread

Benefits:

• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Locking sleeve helps prevent accidental disconnects
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 12.12 GPM Max Flow Rate
• 6.08 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Female Face Diameter: 1.26” (32mm)
• Female Length: 4.65” (118mm)
• Hex: 1.18” (30mm)

Interchangeable with:

Kit Includes:

• 1 Female Coupler
• 1 Female Dust Cap
