SKU: FF38F-08S
Size: 3/8″ Body with 1/2″ SAE Thread
Benefits:
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Locking sleeve helps prevent accidental disconnects
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features:
- 5,076 PSI rating
- 12.12 GPM Max Flow Rate
- 6.08 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F

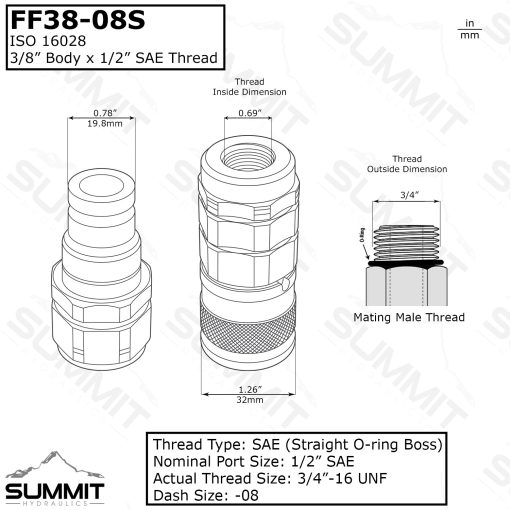

- Female Face Diameter: 1.26” (32mm)
- Female Length: 4.65” (118mm)
- Hex: 1.18” (30mm)
Interchangeable with:
| Manufacturer | Female |
| SUMMIT | FF38F-08S |
| Faster FFH Series | FFH06 12SAE F |
| Eaton Aeroquip FD89 | FD89-1005-08-06 |
| Snap Tite 74 Series | 74C6-8EF |
| Stucchi FIRG Series | 801304008 F. A9 1/2 SAE |
| Dixon HT Series | 3HTOF4 |
| DNP PLT4 Series | FF-HPG-06-08C-SAE |
| Holmbury | HQ10-F-08S |
| Weight | 0.75 lbs |
|---|---|
| Style | Flat Face |
| Body Size | 3/8" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
