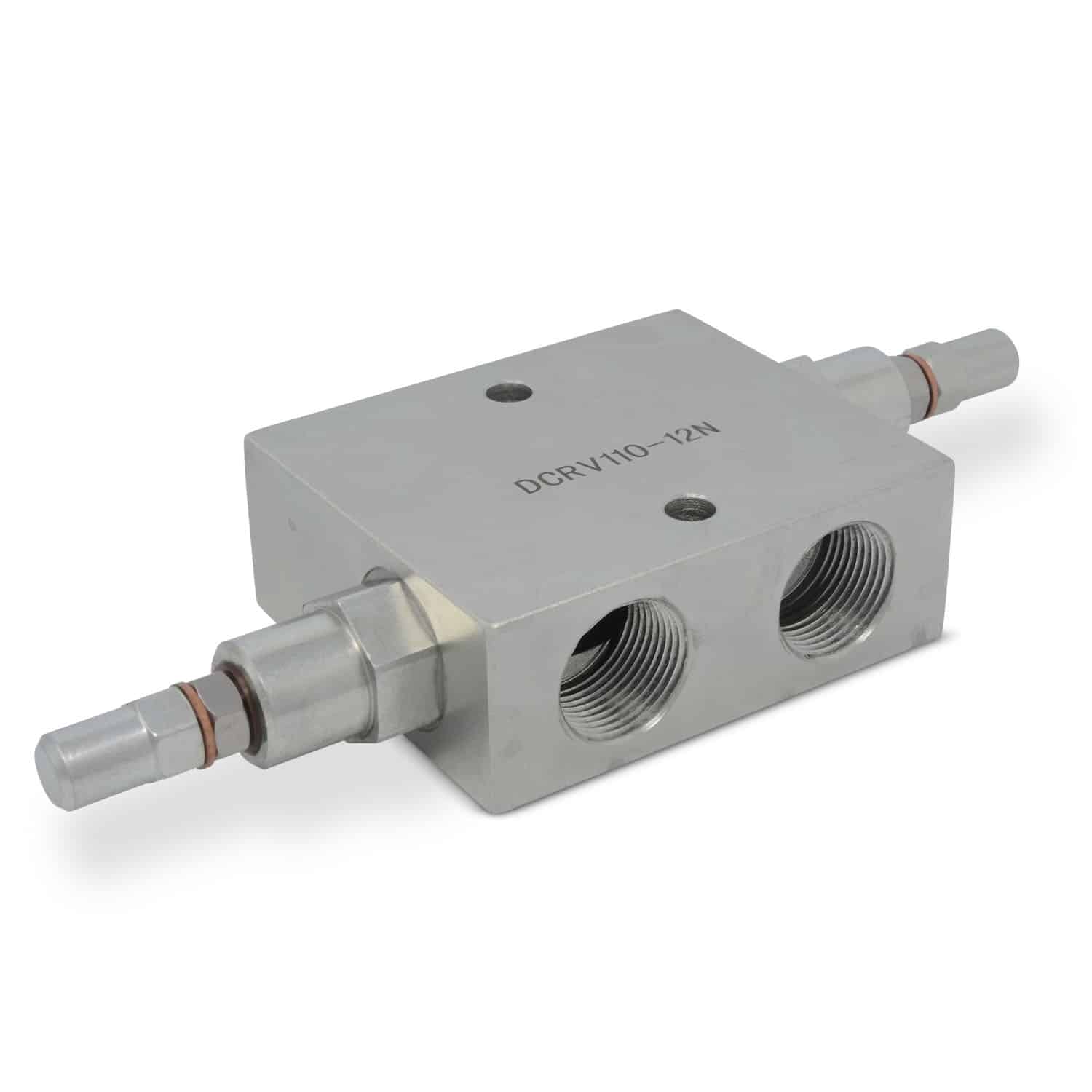

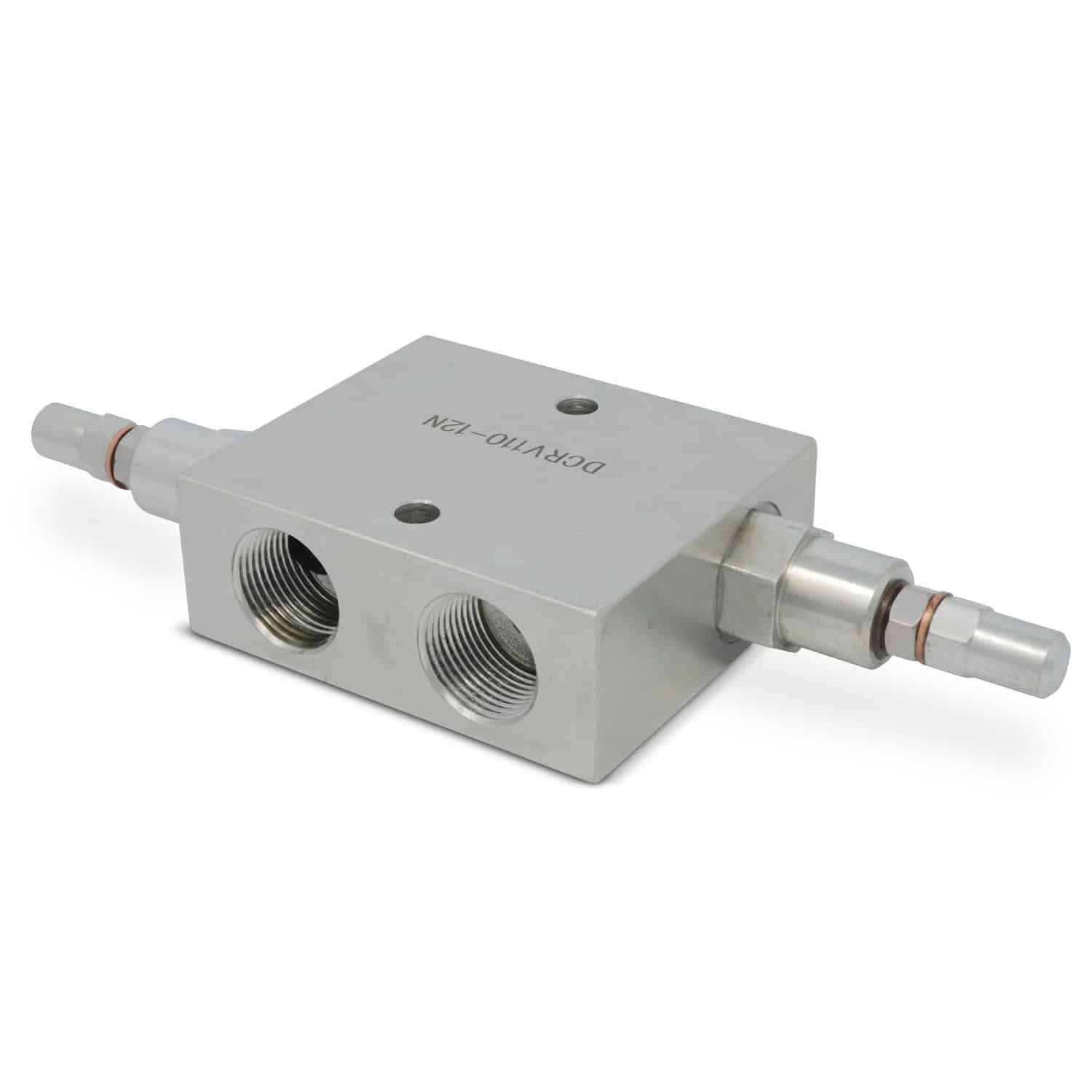

Dual Crossover Hydraulic Relief Cushion Valve, 3/4″ NPT Ports, 30 GPM

SKU: DCRV110-12N

Dual Crossover Hydraulic Relief Cushion Valve, 3/4” NPT Ports, 30 GPM

Provides crossover relief protection for reversible hydraulic motors or can be used as a cushion valve for a double acting cylinder.

Used to stop/minimize surges, shocks and overloads on hydraulic circuits

Valve is installed between the control valve and motor/cylinder (recommended to be installed closer to motor/cylinder to prevent pressure drops).

Features:

• Port Size: 3/4” NPT
• Max Flow Rate: 30 GPM
• Adjustable Relief Range: 150-2600 PSI
• Preset Relief Setting: 1300 PSI
• Max Pressure Rating: 5000 PSI
