SKU: FFP12-08N-SET
ISO Body Size: 1/2”
Port Thread: 1/2” NPT
Benefits:
- Allows to connect to a hydraulic line that is under pressure
- Flush face valve design minimizes fluid loss and air inclusion
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features:
- 5,076 PSI rating
- 23.78 GPM Max Flow Rate
- 12 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F

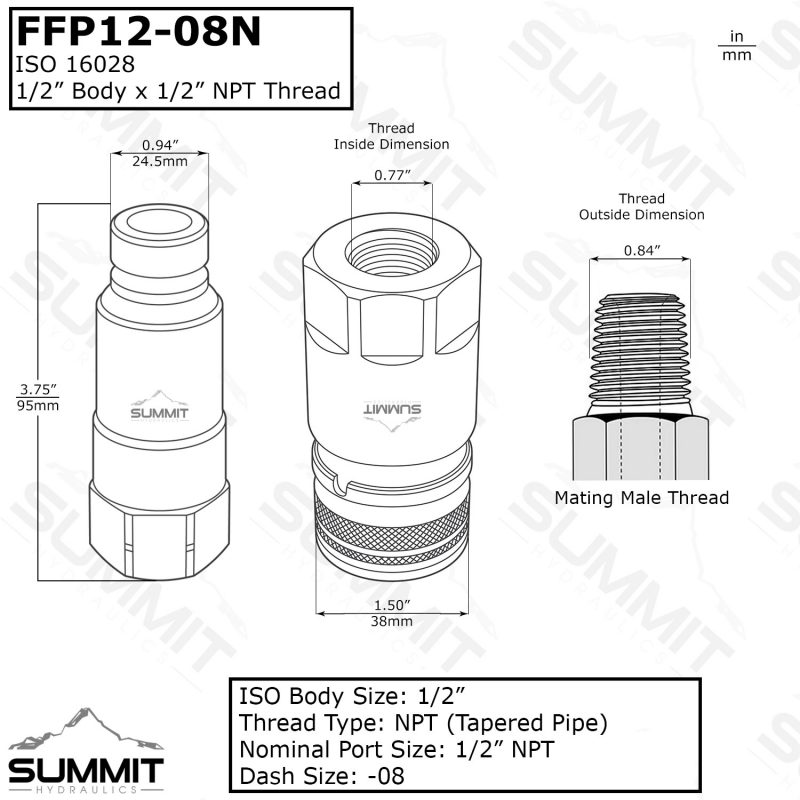

- Male Face Diameter: 0.94” (24.5mm)
- Female Face Diameter: 1.50” (38mm)
- Male Length: 3.75” (95mm)
- Female Length: 3.43” (87mm)
- Male Hex: 1.34” (34mm)
- Female Hex: 1.42” (36mm)
Replaces:
| Manufacturer | Male | Female |
| SUMMIT | FFP12M-08N | FF12F-08N |
| Parker | FEC-502-8FB | FEM-501-8FP |
| Faster | 3FFH08 12NPT M | FFH08 12NPT F |
| Holmbury | HCP12-M-08N | HQ12-M-08N |
| Eaton Aeroquip | 12FFPCUP50 | FD89-1001-08-08 |
| Snap Tite | CP74N8-8F | 74C8-8F |
| Stucchi | M APM13 1/2 NPT | F A13 1/2 NPT |
| DNP | FFK-08-08-N-NPT | FF-HPG-08-08C-NPT |
| Dixon | HTE4F4 | 4HTF4 |
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 5 × 4 in |
| Style | Flat Face |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Locking Type | Ball |
