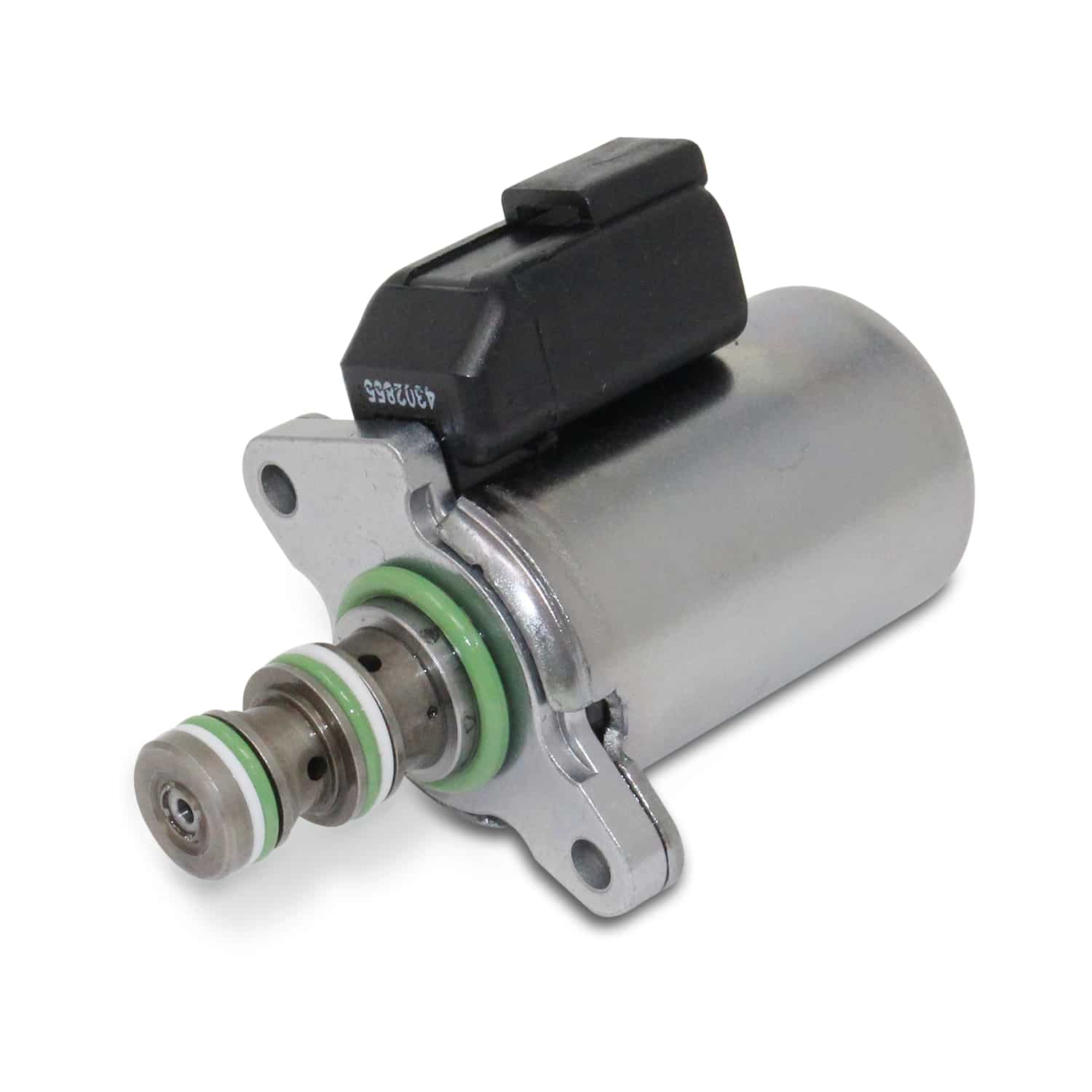

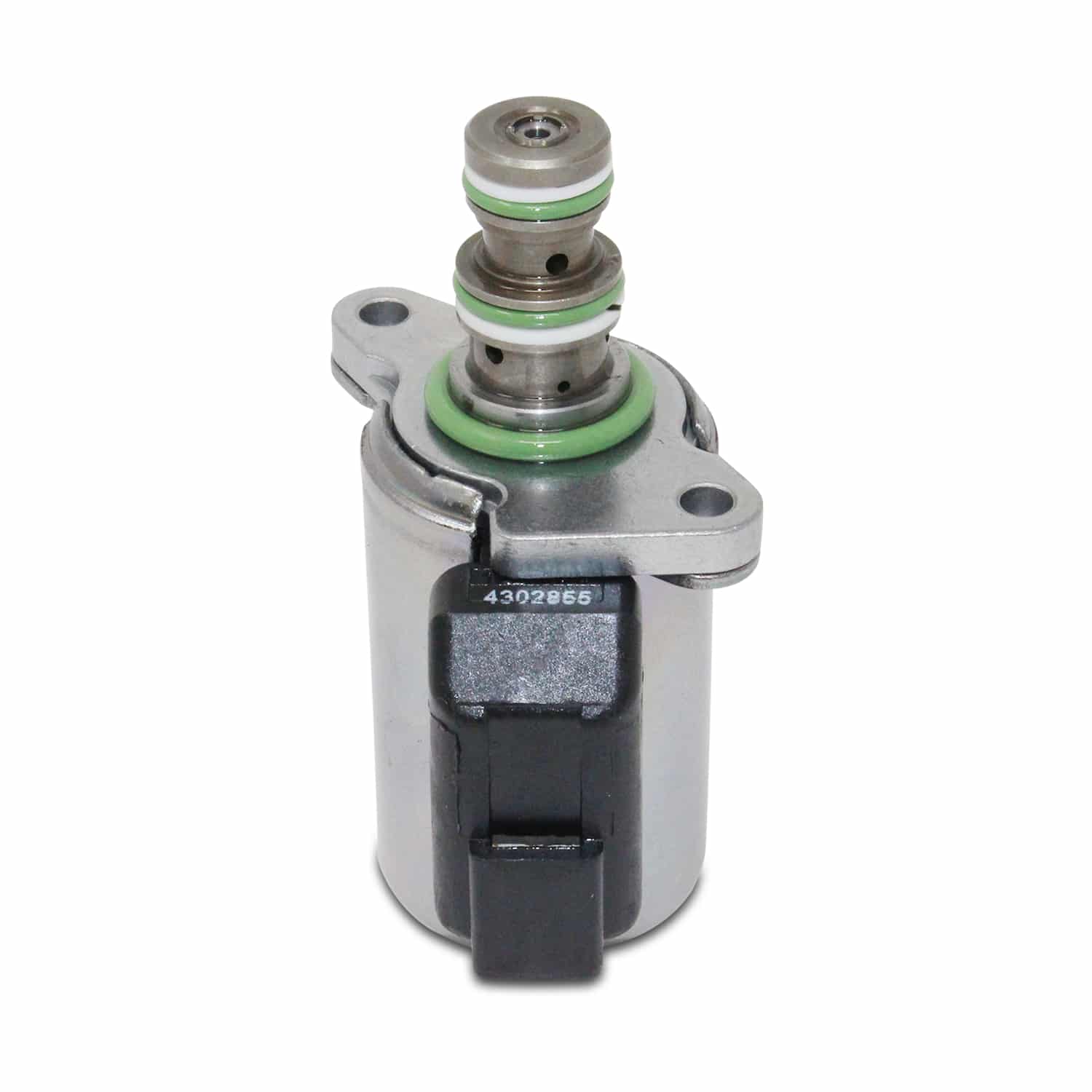

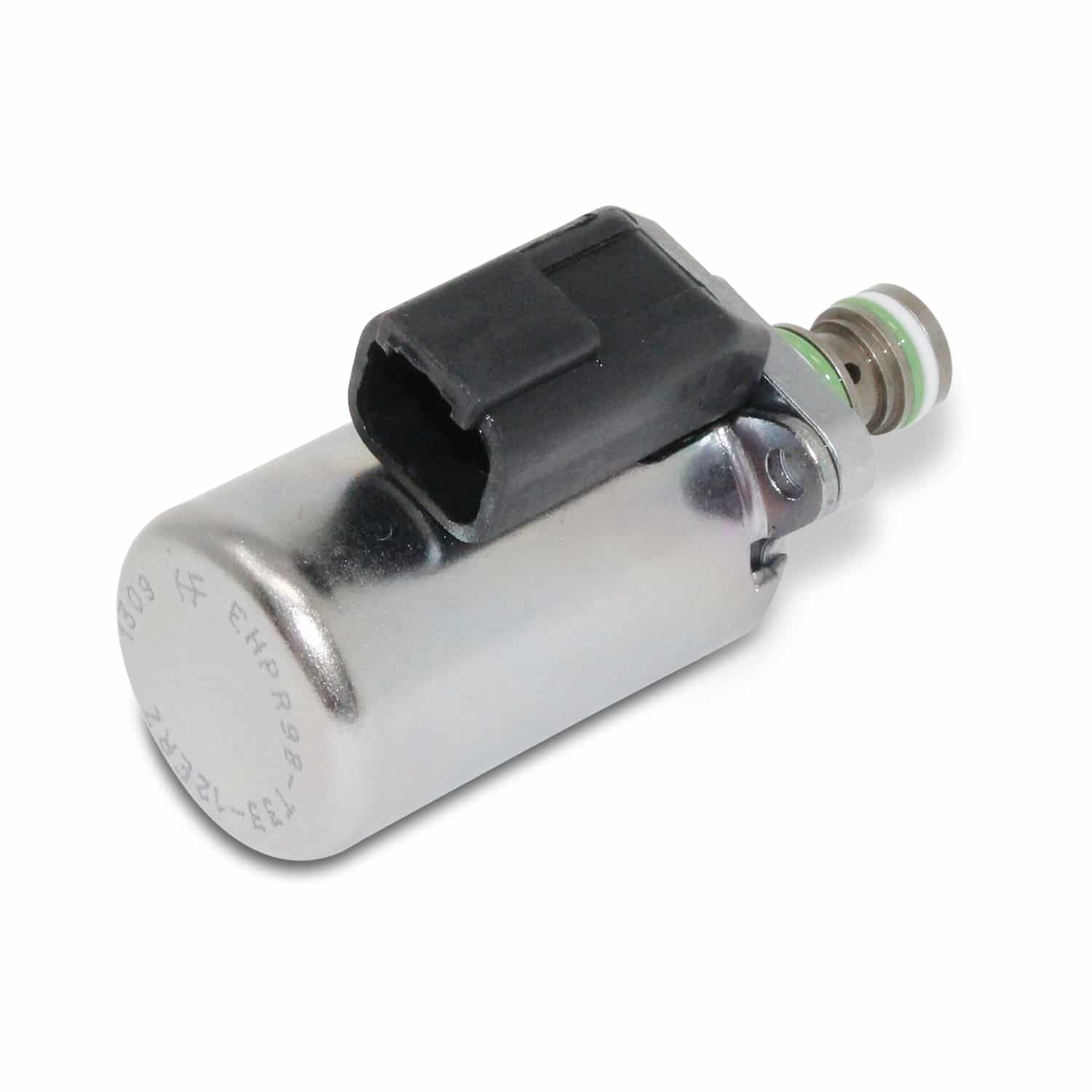

Hydraforce EHPR98-T33-0-N-24ERZ Proportional Pressure Reducing Relief Valve, 24v DC

SKU: EHPR98-T33-0-N-24ERZ

Hydraforce Part Number: EHPR98-T33

Proportional, Reducing / Relieving, Drop-in

A drop-in, flange mount, direct-acting, hydraulic pressure reducing/relieving valve, which
can be infinitely adjusted across a prescribed range using a variable electric input. Pressure
output is proportional to DC current input.

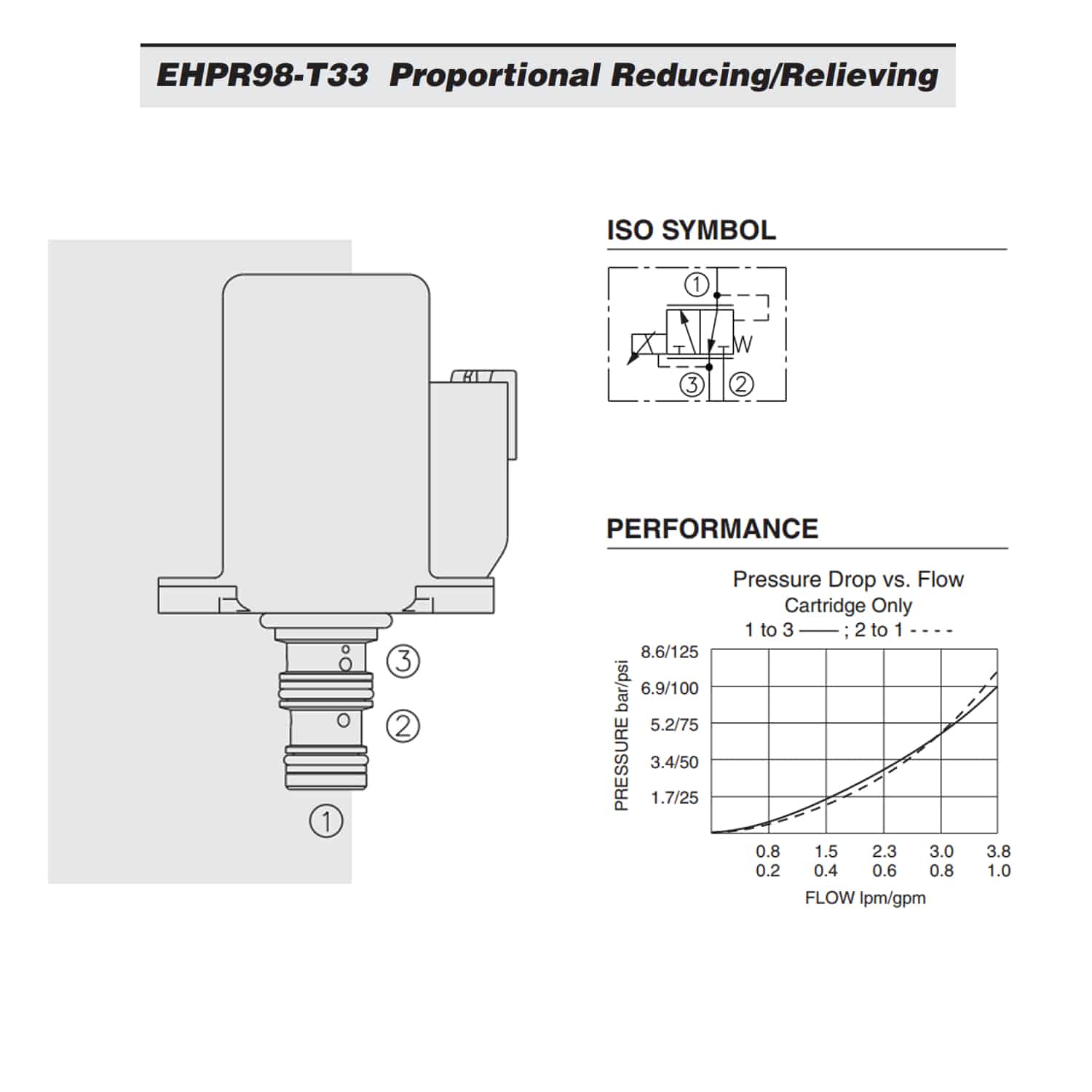

The EHPR98-T33 allows free flow from 1 to 3 when no current is applied to the coil.

When the coil is energized, 2 is connected to 1. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at 1 exceeds the setting induced by the coil, pressure from 1 is relieved to 3.

Back pressure on port 3 becomes additive to the pressure setting at a 1:1 ratio.

Features:

• Economical drop-in style
• Connection: Deutsch DT04-2P
• Voltage: 24v DC
• Zener Diode, Bidirectional
• 1 GPM max Flow
• 3500 PSI Rated
• Fits VC-T009 Cavity
