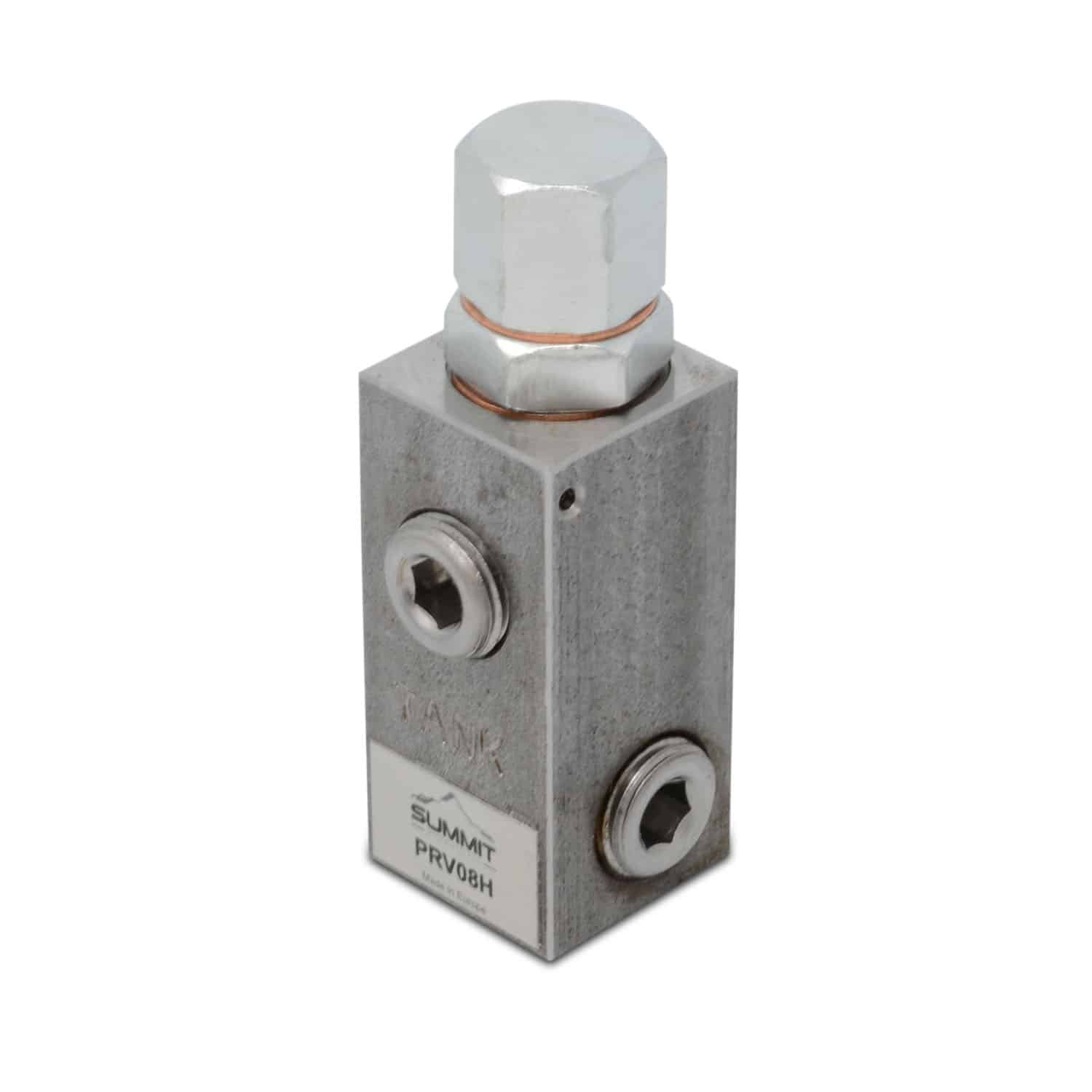

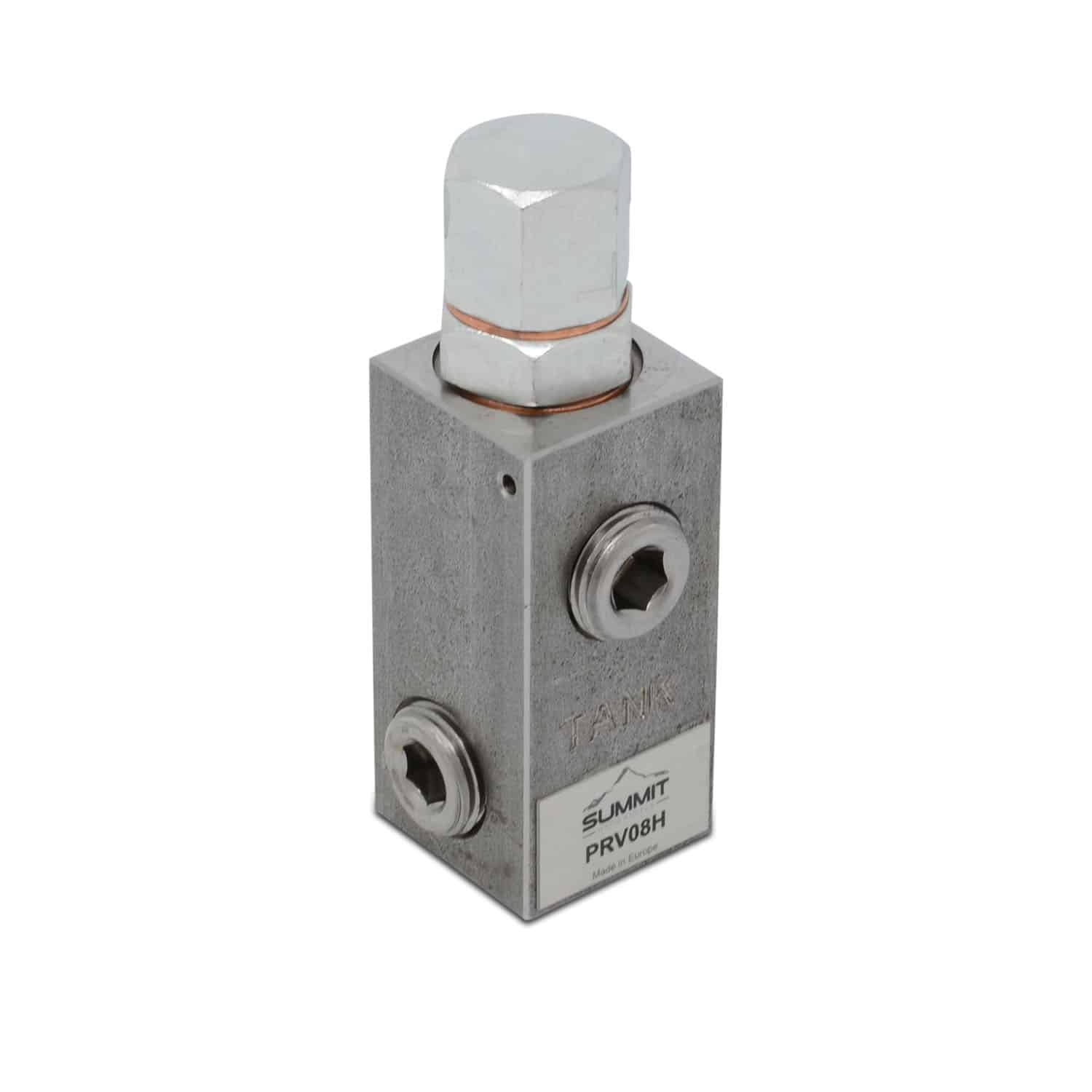

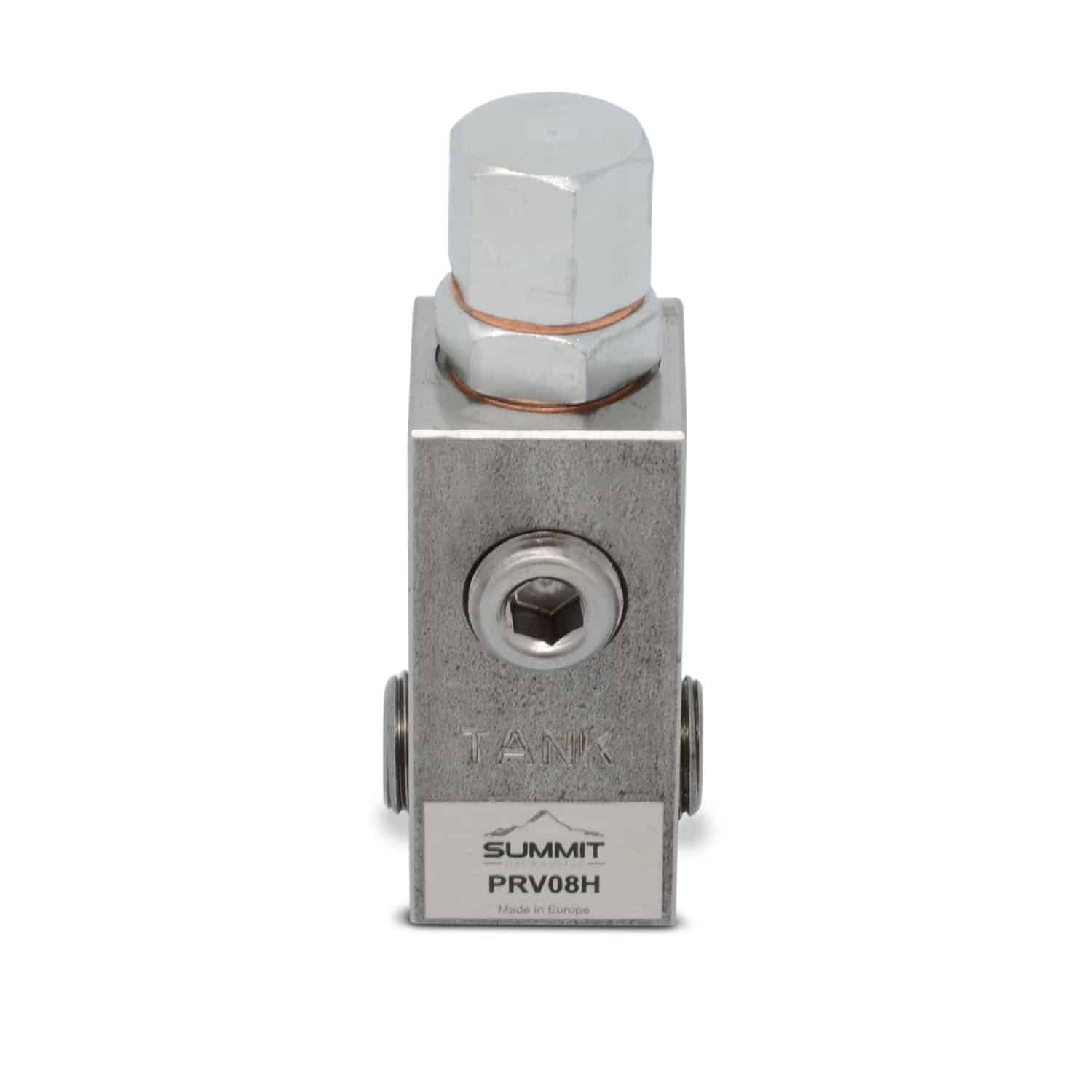

SKU: PRV08H
- Inline mounting ball spring relief
- Hardened Seat ensures durability
- Port Size: 1/2” NPT
- Max Flow: 16 GPM
- Max Pressure: 2500 PSI
- Preset at 1500 PSI
- Adjustable Range: 1000-2500 PSI
Similar to:
- Prince RD1800 Series
- RVT850
- Chief 220967
To adjust relief please remove acorn nut loosen jam nut, turn the adjusting screw clockwise to increase the pressure and counterclockwise to decrease the pressure.
WARNING: Over-pressure may cause sudden and unexpected failure of a component in the hydraulic system resulting in serious personal injury. Always use a gauge when adjusting a relief valve.
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
| Thread / Port Size | |
| Flow Rating | 16 GPM |
| Maximum Pressure | 2,500 PSI |
| Adjustable Pressure Range | 1000-2500 PSI |
