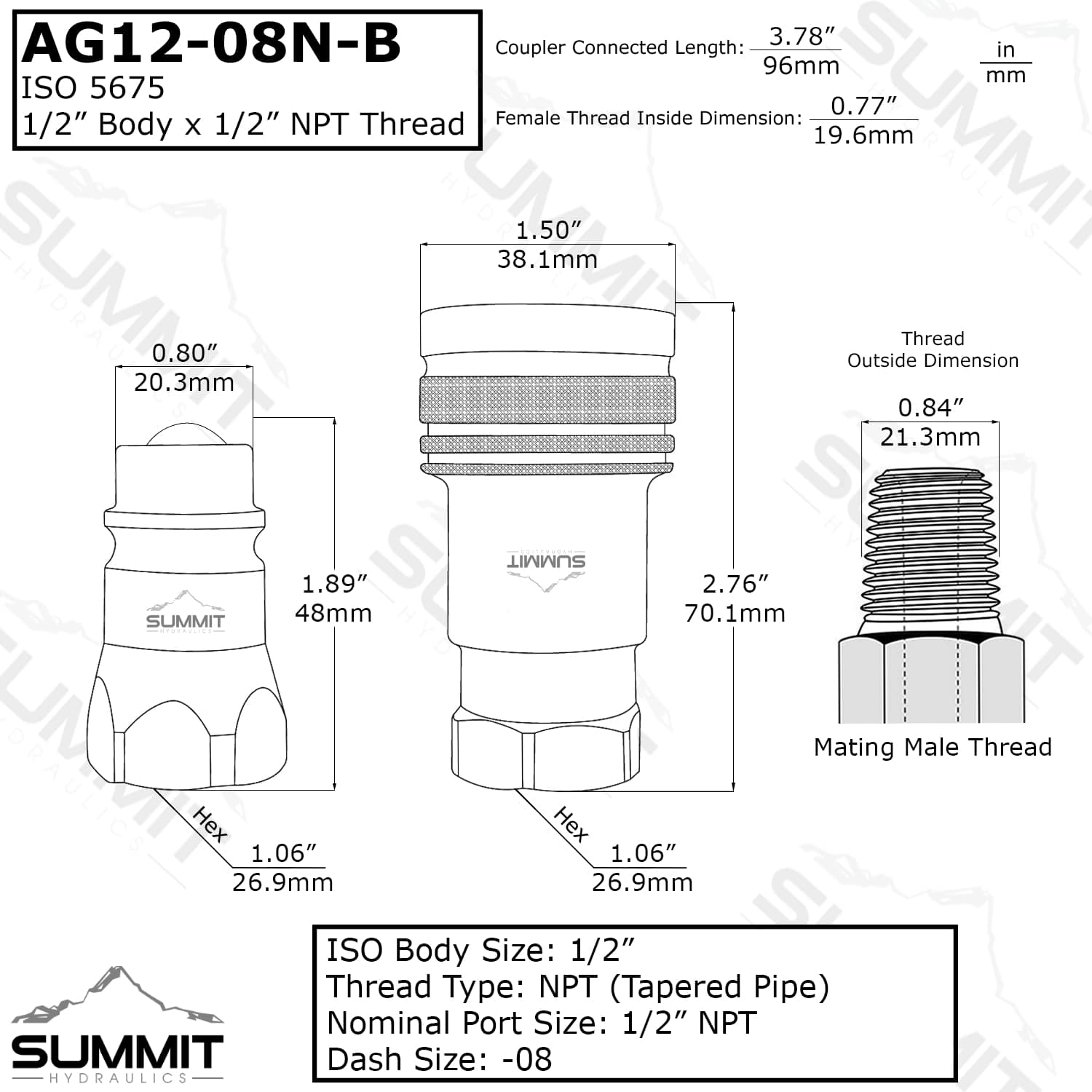

SKU: AG12-08N-B-SET
This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all 1/2″ body ISO 5675 series / Pioneer style couplers including ball seat valve, poppet seal, and 1/2″ Body ISO 7241-A couplers.
ISO Body Size: 1/2″ Body
Thread Size: 1/2″ NPT Thread, Ball Valve
This 1/2″ coupler set consists of a male and female quick coupler.
Features:
- Nominal Flow Rate: 7.9 GPM
- Max Flow Rate: 14.5 GPM
- 3600 PSI Rating
- Hardened Steel Plugs
- 23,000 PSI Burst Rating (Coupled)
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | AG12M-08N-B | AG12F-08N-B |
| Parker 4000 Series | 8010-4 | 4050-4 |
| Safeway S20 Series | S71-4 | S25-4 |
| Faster NV/NS Series | NS 12 NPT M | NS 12 NPT F |
| Stucchi IR Series | 800001005 M IR12 NPT |
800001004 F IR12 NPT |
| Dixon AG Series | AG4F4 | 4AGF4 |
What’s Included:
- Female Coupler
- Male Coupler
- PVC Dust Plug
- PVC Dust Cap
https://staging.summit-hydraulics.com/product/dust-cap-and-plug-set-for-1-2%E2%80%B3-body-ag-couplers/
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 4 × 3 in |
| ISO Standard | |
| Style | Agricultural |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
