SKU: AG1-16N-SET
This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries. They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.
ISO Body Size: 1”
Port Thread: 1” NPT
This 1″ coupler set consists of a male and female quick coupler.
Features:
- 3600 PSI Rating
- Nominal Flow Rate: 50 GPM
- 66 GPM Max Flow
- Hardened Steel Plugs
- Buna-N Seals with Teflon backup ring can operate up to 250° F
- Poppet Valve

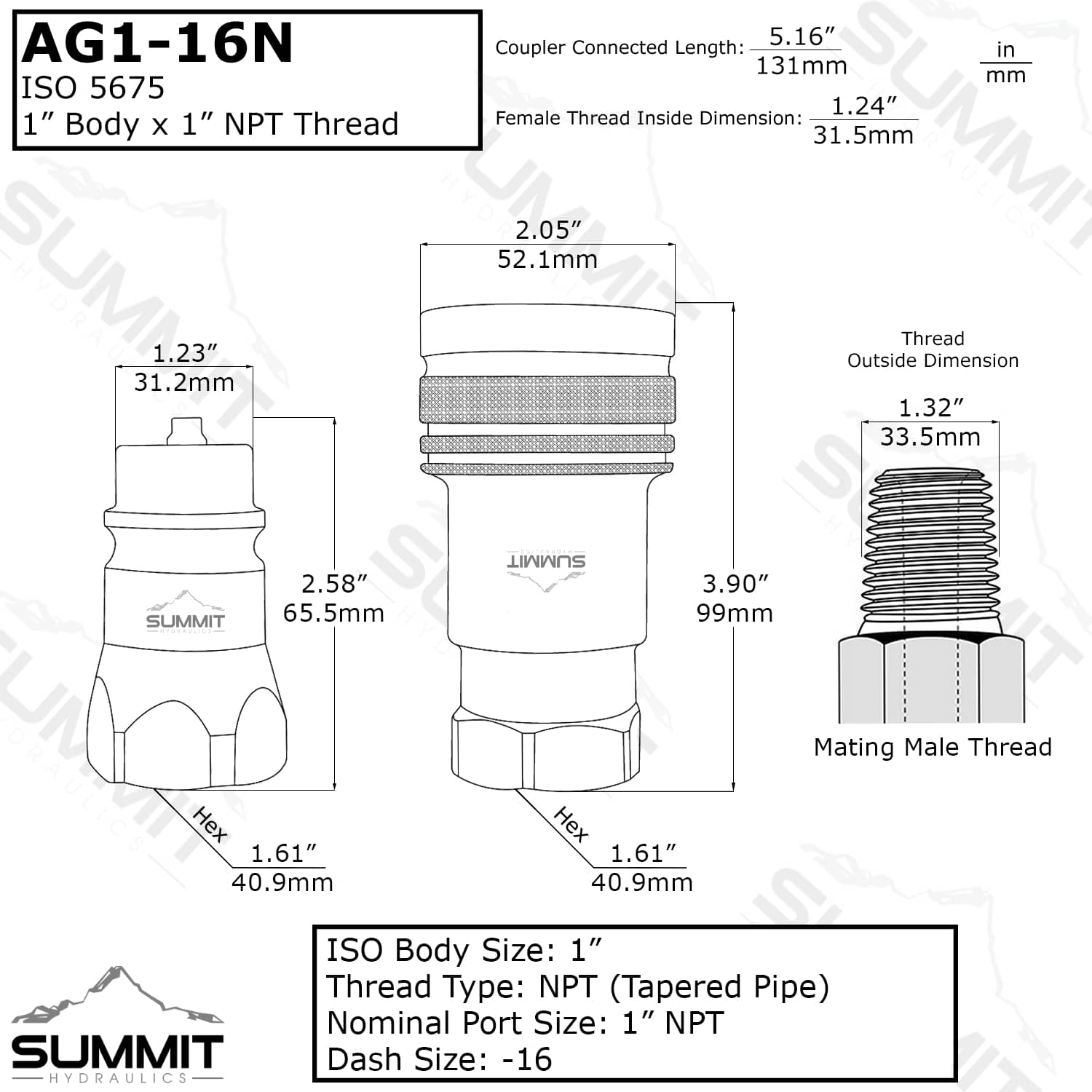

- Female Length: 3.897”
- Male Length: 2.578”
- Coupled Length: 5.16”
- Hex: 1.617”
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | AG1M-16N | AG1F-16N |
| Parker 4000 Series | 4010-6P | 4050-6P |
| Safeway S20 Series | S21-8P | S25-8P |
| Faster NV/NS Series | NV 1 NPT M | NV 1 NPT F |
| Stucchi IRV Series | 800101007 M IR100V NPT |
800101006 F IR100V NPT |
| Dixon AG Series | AG8F8-PV | 8AGF8-PV |
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
| ISO Standard | |
| Style | Agricultural |
| ISO Body Size | |
| Body Size | 1" |
| Thread Type | |
| Thread Size | 1" |
| Body Material | Hardened Steel |
| Locking Type | Sleeve |
| Coupling |
