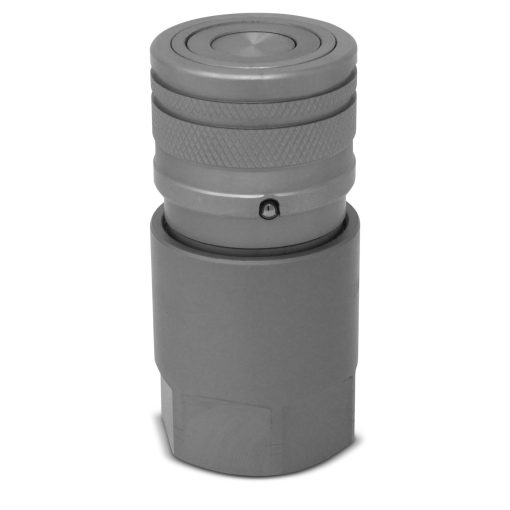

SKU: FF12F-08BSP
ISO Body Size: 1/2”
Port Thread: 1/2” BSP (British Standard Pipe) Thread
Benefits
- Flush face valve design minimizes fluid loss and air inclusion
- Locking sleeve to prevent accidental disconnection
- Zinc-nickel plating provides superior corrosion resistance
- Hardened steel construction with hardened sleeves
- Allows for minimal pressure drops
- Easy single-handed push-connect design
- Nipple seal resists blow-outs
- Interchangeable with other ISO 16028 standard couplings
Features
- 5,076 PSI rating
- 23.78 GPM Max Flow Rate
- 12 GPM Nominal Flow Rate
- Buna-N Seals with Teflon backup ring can operate up to 250° F
- Face Diameter: 1.50” (38mm)
- Length: 3.43” (87mm)
- Hex: 1.42” (36mm)
| Weight | 1.24 lbs |
|---|---|
| Dimensions | 6 × 3 × 3 in |
| ISO Standard | |
| Style | Flat Face |
| ISO Body Size | |
| Body Size | 1/2" |
| Thread Type | |
| Thread Size | 1/2" |
| Body Material | Hardened Steel |
| Coupling | |
| Locking Type | Ball |
