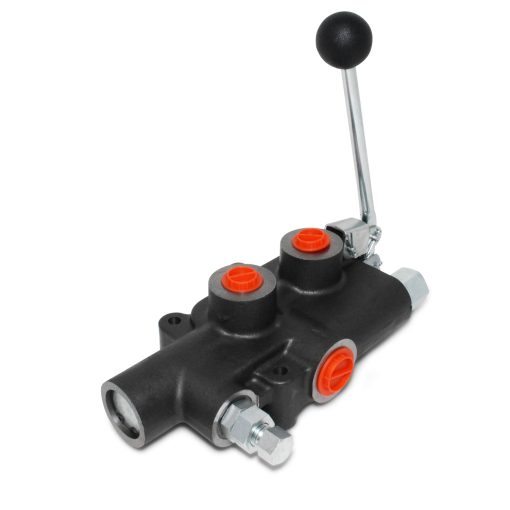

Hydraulic Log Splitter Control Valve w/ Return Stroke Detent, 21 GPM
$113.95
FREE SHIPPING
Hydraulic Log Splitter Control Valve w/ Return Stroke Detent, 21 GPM
In stock
Hydraulic Log Splitter Control Valve w/ Return Stroke Detent, 21 GPM
Hydraulic control valve for operating hydraulic cylinders. Pressure operated detent on return stroke, spring center on extend for use with log splitters or other auto detent applications. Pressure-release detent adjustable from 1,015 to 2,030 PSI.
- Open Center
- Max Flow: 21 GPM
- Max Pressure: 3625 PSI
- Working Ports A, B: 1/2” NPT
- Inlet port P: 3/4” NPT
- Outlet port T: 3/4” NPT
- Made in Europe
| Weight | 10 lbs |
|---|---|
| Dimensions | 12 × 9 × 6 in |
| Flow Rating | 21 GPM |
| Number of Spools | 1 |
| Actuation | Lever |
| Optional Rapid Extend Mode | Yes, No |
